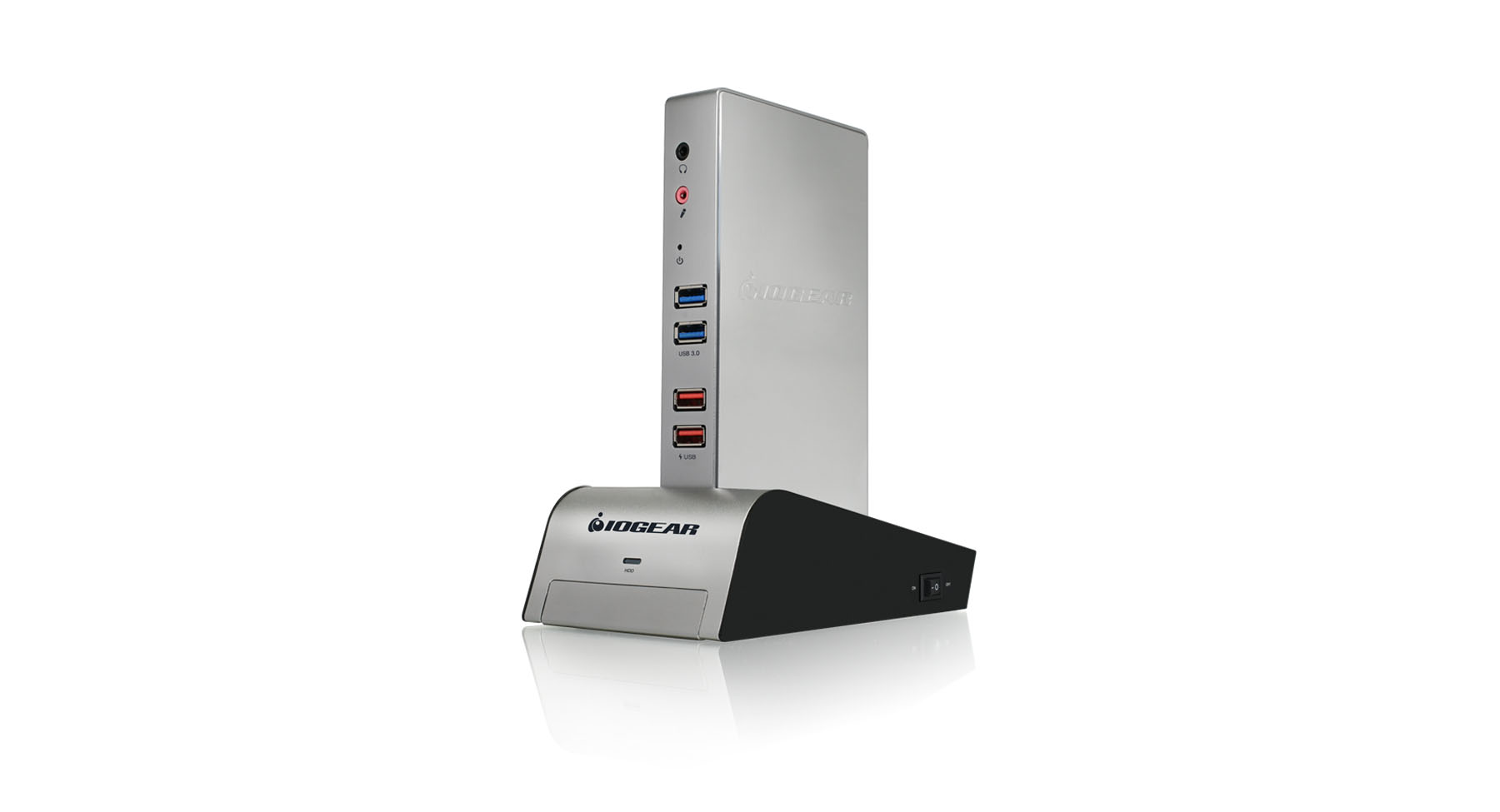

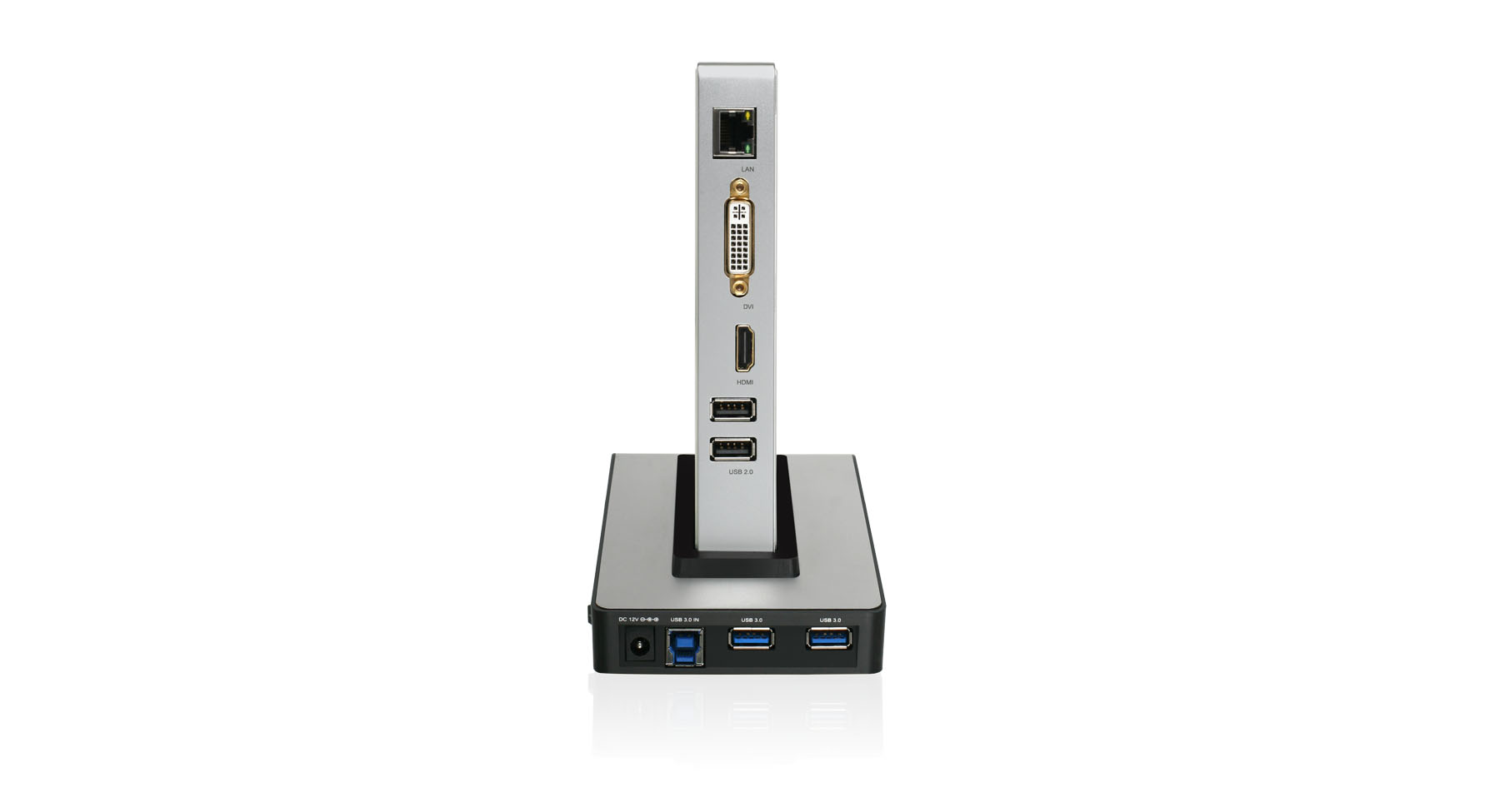

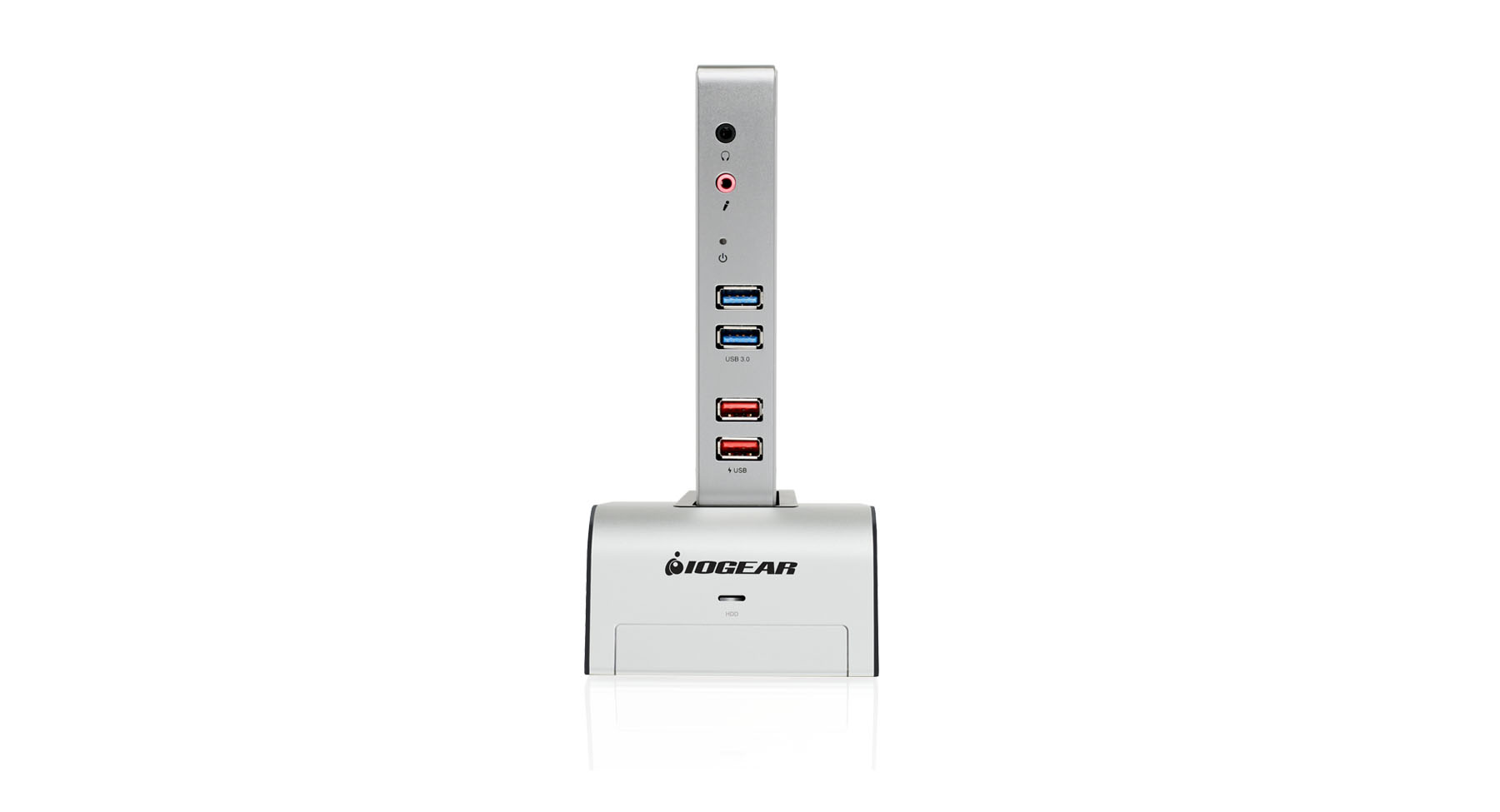

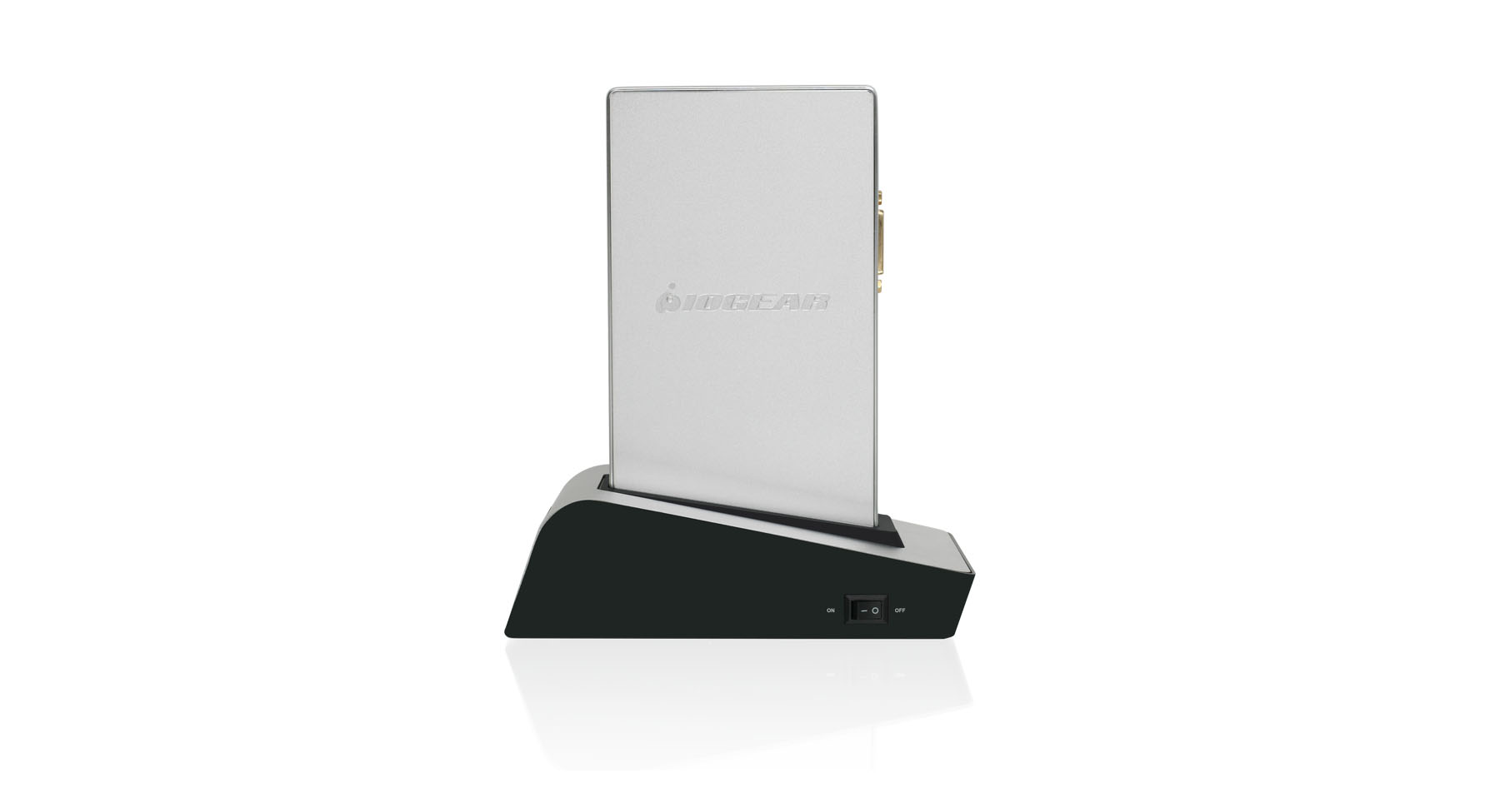

met(AL)™ Vault Dock, USB 3.0 Docking Station with built-in Backup Drive Enclosure
GUD310
MSRP: $159.95
USB 3.0 Docking Station with HDD Storage
IOGEAR's Met(AL)™ Vault Dock, USB 3.0 Universal Docking Station with HDD Enclosure quickly and easily turns your laptop, Ultrabook™ or Microsoft Surface® Pro tablet into a full-featured workstation with support for dual monitors (DVI-I and HDMI). Featuring a gigabit Ethernet port, two USB 2.0 ports, four USB 3.0 ports, two dedicated USB fast-charging ports, microphone / speaker connections with a HDD enclosure, the Met(AL)™ Vault Dock has connections to suit virtually any application.
Multitask with Dual Monitors
The Met(AL)™ Vault Dock gives you the power to connect two extra monitors. Dual monitor outputs allow you to edit videos on one screen, compose the soundtrack on another screen and check email on your laptop screen all at the same time!
Great for the Latest 2-in-1 Laptops & Tablets
Tablets and 2-in-1 laptops are portable and easy to use. However, these touchscreen devices lack the range of capabilities that makes desktop computers the standard for workstations.Ultra-portable touch-screen devices oftentimes fall short when it comes to ports, storage capacity, and a fast, comfortable keyboard. With the power of Windows® 10 Pro, tablets are now ready to replace your home PC. When it's time to go from leisure time to work, just plug your Windows® 10 Pro enabled tablet into the Met(AL)™ Vault Dock and it becomes your full-blown work center! Now you can create a workstation suitable for nearly any task.
Where did my peripheral connectors go?
Did you just buy the latest ultrabook or MacBook only to find there are few or no USB ports and Ethernet (RJ-45) connector? No problem. IOGEAR's met(AL)™ Vault Dock has everything needed to connect you to your world.
Design that Excites
The Met(AL)™ Vault Dock stands out from the rest from the minute you look at it. The docking station sits vertically into the HDD enclosure docking base and this not only creates a unique look, but gives you easy access to all the ports on the docking station. The clean lines, unique shape and all-aluminum housing of the Met(AL)™ Vault Dock give any workstation a premium and sophisticated look. The aluminum casing is not only sleek, but also provides superior protection and durability to withstand even the worst of every day wear-and-tear.
Optimized for Speed
Complaint with USB 3.0 standards, the Met(AL)™ Vault Dock can process all your tasks at blazing fast speeds. The power of USB 3.0 allows you to transfer data at up to 5Gbps – that's 10 times faster than USB 2.0!
All Your Files in One Place
IOGEAR's Met(AL)™ Vault Dock gives you unprecedented storage capacity by allowing you to add a hard drive to the docking station. The docking base opens up to reveal a HDD slot that is compatible with any standard 2.5” SATA hard drive. Now you can store all your videos, pictures, music and documents in one place and take it with you wherever you go. This versatility makes the Met(AL)™ Vault Dock the perfect docking station for work and at home. When it's time to leave the office, simply unplug the dock and take it home with you.
- Great expansion unit for computers with extra connectivity demand
- Ports and connections
- 4 x USB 3.0
- 2 x USB charging ports
- 2 x USB 2.0
- 1 x HDMI
- 1 x DVI
- 1 x DVI to VGA Adapter
- 1 x Gigabit LAN
- Gigabit Ethernet network: 1000Mbps/100Mbps/10Mbps
- 2 Video output Ports:
- HDMI (HDCP) with Audio + Video (Resolution: 2048 x 1152)
- DVI with Video (Resolution: 2048 x 1152)
- 5.1 Surround Sound Audio
- Sleek aluminum housing complements any home or office space
- Hot pluggable - add or remove devices without system reboot
- Resumes from hibernation and suspend modes
DisplayLink driver does not work on MacOS 10.13.4 and above - learn more
- CPU: Intel® Core™ 2 Duo 2.0 GHz or better (Intel® Core™ i5 Quad Core 2.4GHz or better recommended for video playback)
- RAM: 2GB or better (4GB recommended for video playback)
- Operating System
- Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, and Windows® 11.
- Mac OS X 10.8.5, 10.9, 10.10
- 1 x GUD310
- 1 x HDD Docking Base
- 1 x DVI to VGA Adapter
- 1 x USB 3.0 Cable
- 1 x Power Adapter
- 1 x Installation CD
- 1 x Quick Start Guide
- 1 x Warranty Card
| Distributor | Part # |
|---|---|
| Ingram | 1Z4936 |
| DH | GUD310 |
| Synnex | 4324524 |
| SKU | ECCN |
|---|---|
| GUD310 | EAR99 |
| Function | GUD310 |
|---|---|
| Operating System Requirements | |
| Windows | Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 |
| Mac | Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10 |
| Android | Android 5.0+ (requires DisplayLink Desktop App) |
| USB Specification | USB 3.0 |
| Display Output | |
| HDMI | up to 2560x1440 (1 monitor connected via HDMI 1.4 cable), up to 2048x1152 / 1920x1200 (2 monitors connected) |
| DVI-I | up to 2048x1152 / 1920x1200 |
| VGA | up to 1920x1200 (using included adapter) |
| LAN Connection | Gigabit 10/100/1000Mbps |
| Power Adapter | Input: 100-240VAC @ 50/60Hz 2A Output: 12VDC @ 2A |
| Connectors | |
| Audio Input | 3.5mm mic input |
| Audio Output | 3.5mm output (5.1 Channel) |
| USB | (2) USB 3.0 / (4) USB 2.0 / (2) USB charge ports @ 1.5A output |
| LAN | RJ-45 Ethernet connector |
| SATA / eSATA | Supports all SATA 2.5" drives |
| Audio | |
| Audio Output | Supports 6 channel audio (5.1 surround) |
| Console Connectors | |
| Monitor | 1 HDMI output & 1 DVI output (includes DVI to VGA & HDMI to DVI adapters |
| Dimensions | GUD310 |
|---|---|
| Unit Dimensions | |
| Height | 8" (20.32cm) |
| Length | 3.625 (9.2cm) |
| Depth | 6.25" (15.9cm) |
| Unit Package Dimensions | |
| Height | 8.38" (21.3cm) |
| Width | 12.25" (31.12cm) |
| Depth | 3.56" (9.04cm) |
| Master Carton | |
| Height | 9" (22.86cm) |
| Width | 13" (33.02cm) |
| Depth | 11.5" (29.21cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 11.85lbs (5.38kg) |
| Unit Pack Wt. | 3.55lbs (1.61kg) |
| Unit Wt. | 1.35lbs (0.61kg) |
