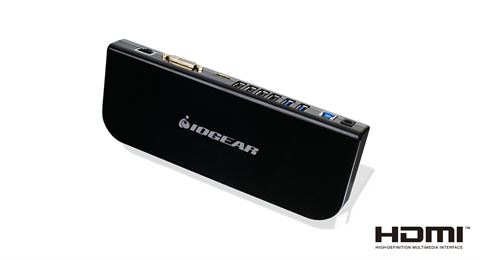

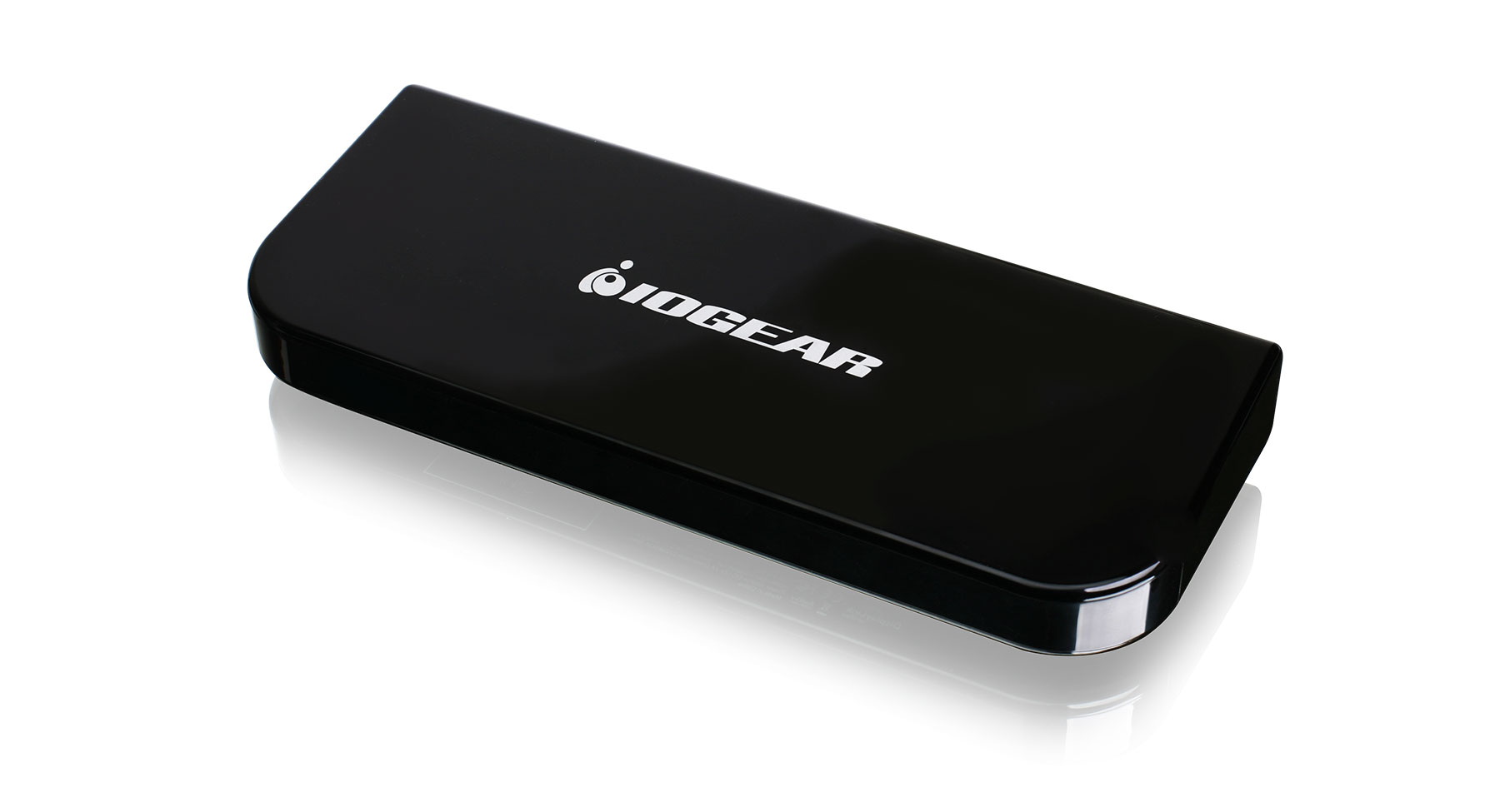

USB 3.0 Universal Docking Station with Power Adapter
GUD300
MSRP: $174.95
USB 3.0 Docking Station with Power Adapter (and Dual Monitor Function)
IOGEAR'S USB 3.0 Universal Docking Station quickly and easily transforms your laptop, Ultrabook or Microsoft Surface® Pro tablet into a full-featured workstation. This universal dock is an all-in-one solution to the latest port-deficient laptops and tablets. It allows you to connect as many as 10 devices to your laptop through a single high speed USB 3.0 cable that offers speeds up to ten times faster than the previous USB 2.0 standard. With support for dual monitors, Gigabit Ethernet, 6 USB ports, plus microphone and speaker connections, the USB 3.0 Universal Docking Station connects you to all your peripherals so that you can completely mobilize your customized home office. It also comes with its own power adapter so that you can connect and power all your USB devices without a worry.
Optimal Productivity

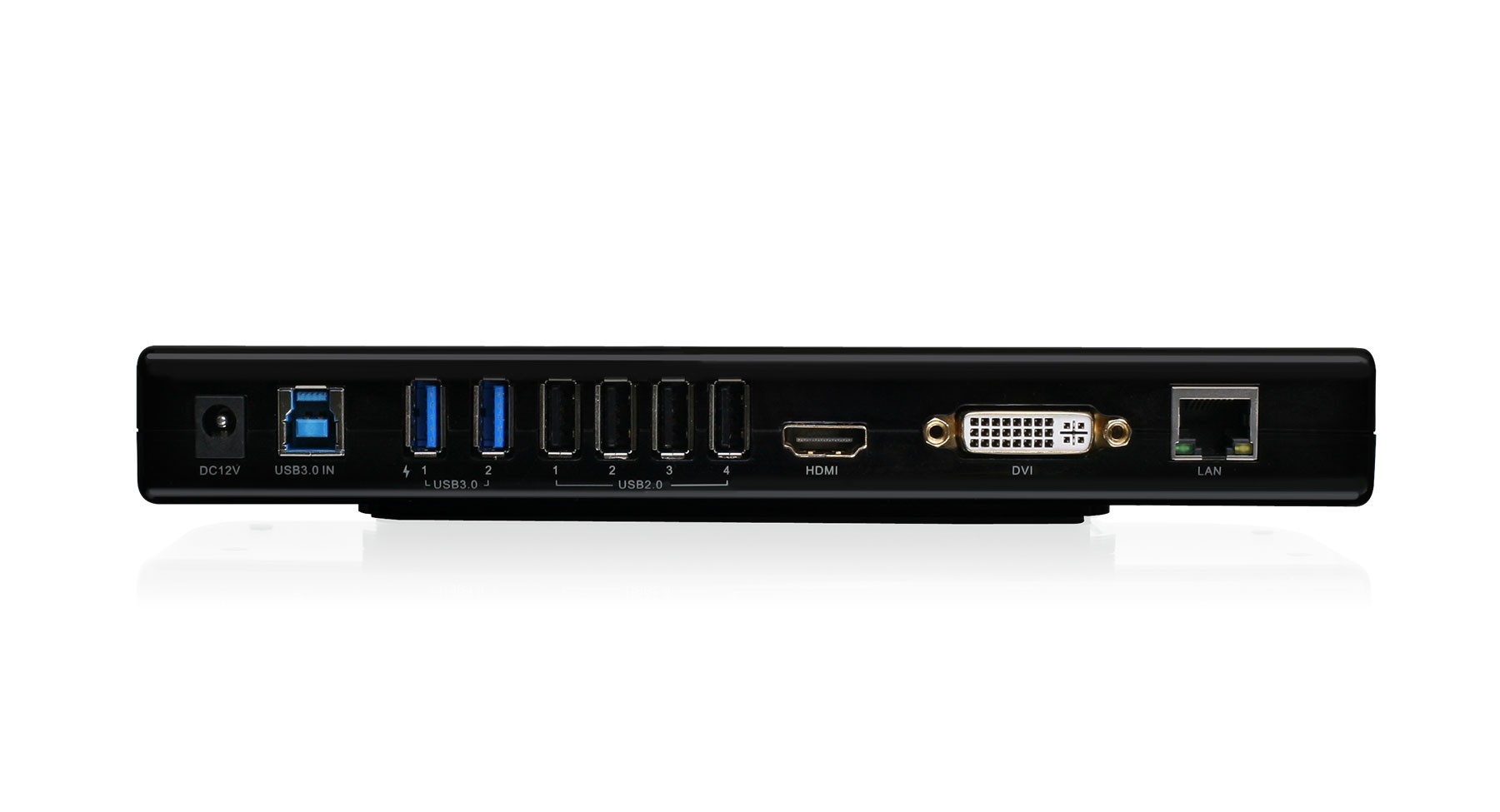

The USB 3.0 Universal Docking Station has connections to suit virtually every application. The dock gives you HDMI and DVI connections that can support a resolution of 2560 x 1440. It also has a gigabit Ethernet port, six USB ports (two USB 3.0 and four USB 2.0), and audio input/output jacks for headsets or speakers. Now you can easily add a full-sized keyboard and mouse, external hard drives, printers, webcams, etc. to turn your laptop into a complete workstation. Although this universal dock is equipped to take advantage of USB 3.0 Super Speed technology, it is fully backwards compatible with USB 2.0 devices. And since the connections from all your peripheral devices are consolidated to your computer through a single USB 3.0 cable, disconnecting only takes removing one plug.
Ideal for the Latest Tablets
Ultra-portable tablets are ideal when you're on the go but their performance is restricted due to their limited connectivity. With the power of IOGEAR's USB 3.0 Docking Station and Windows 10 Pro, tablets are now ready to replace your home PC. When it's time to go from leisure time to work time, just plug your Windows 10 Pro enabled tablet into the IOGEAR USB 3.0 Docking Station and it becomes your full-blown work center! Now you have a complete home office suitable for nearly any task.
Multitask

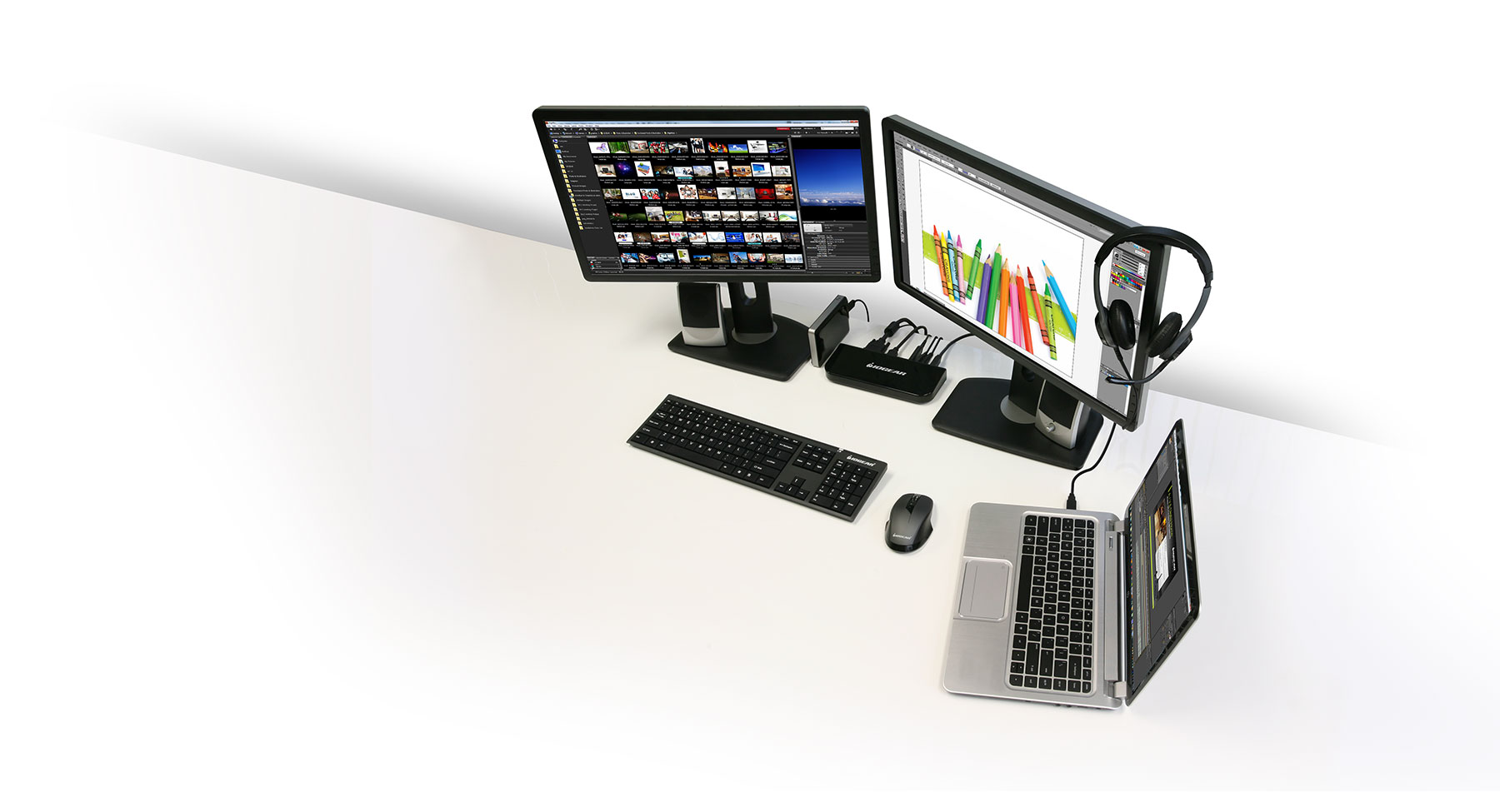

Add 2 external displays to your workstation for a total of three screens! With dual monitor outputs you can edit video on one screen, compose the soundtrack on another screen, plus monitor email on your laptop screen all at the same time!
- Universal USB 3.0 Ultrabook / Laptop / Tablet* Docking Station
- Dual Monitor support with DVI-I and HDMI outputs
- Resolution**- HDMI: 2560x1440 single monitor only, DVI: 2048 x 1152, VGA (using supplied adapter): 1920x1200
- Integrated 2-port USB 3.0 and 4-port USB 2.0 Hub for external drives, cameras and phones
- Integrated Gigabit Ethernet port (RJ-45) - Supports 10/100/1000BASE-T
- Stereo audio with 3.5mm headphone output jack
- Microphone 3.5mm input jack
- Perfect for Workstations, Business, Home Offices and Entertainment Centers
*Windows 8 Pro tablets (Microsoft Surface™ Pro, Surface™ Pro 2, etc.)
**2560x1440 resolution requires connection via HDMI 1.4 cable and DVI output not used; maximum resolution with two monitors connected is 1920x1080 for both monitors
Microsoft and Surface are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries
DisplayLink driver does not work on MacOS 10.13.4 and above - learn more
Hardware
- Computer or tablet with USB 3.0 or USB 2.0 port*
* USB 3.0 speeds are not available when connected to a USB 2.0 port.
Operating System
- Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 , Windows® 11
- MAC OSX 10.6 or later
| Distributor | Part # |
|---|---|
| Ingram | UX5219 |
| DH | GUD300 |
| Synnex | 3795714 |
| SKU | ECCN |
|---|---|
| GUD300 | EAR99 |
| Function | GUD300 |
|---|---|
| Operating System Support | Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10 |
| USB Specification | USB 3.0 |
| Resolution | HDMI: up to 2560x1440 (1 monitor connected via HDMI 1.4 cable), up to 2048x1152, 1920x1200 (2 monitors connected) / DVI: up to 2048x1152, 1920x1200 / VGA (using included adapter): up to 1920x1200 |
| LAN Connection | Gigabit 10/100/1000Mbps |
| Power Adapter | Input: 100-240VAC @ 50/60Hz 2A Output: 12VDC @ 2A |
| Connectors | |
| Audio Input | 3.5mm mic input |
| Audio Output | Stereo audio with 3.5mm headphone output jack |
| USB | (2) USB 3.0 / (4) USB 2.0 / (2) USB charge ports @ 1.5A output |
| LAN | RJ-45 Ethernet connector |
| Audio | |
| Audio Output | Supports 6 channel audio (5.1 surround) over HDMI |
| Console Connectors | |

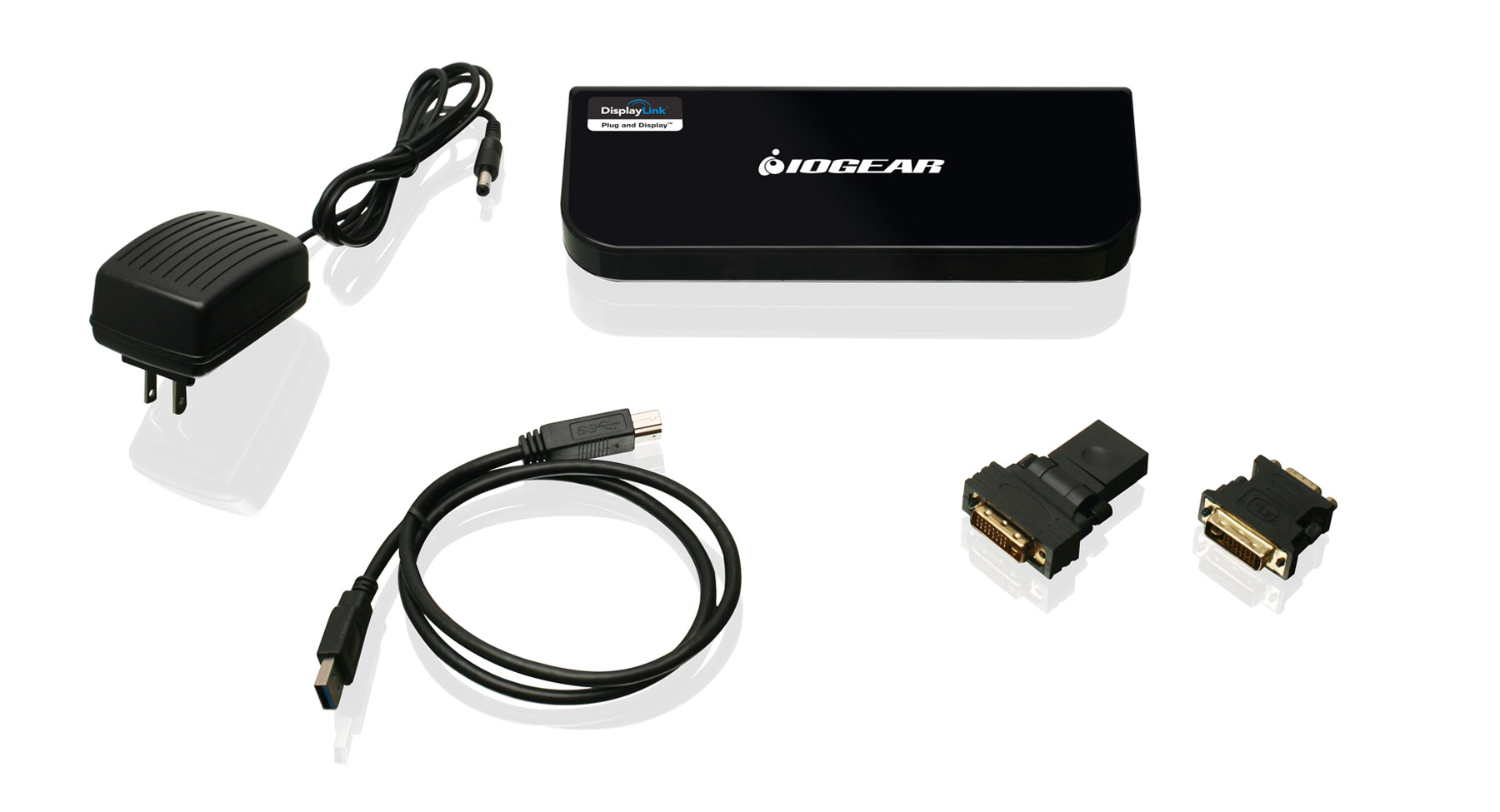

| Monitor | 1 HDMI output & 1 DVI output (includes DVI to VGA & HDMI to DVI adapters |
| Dimensions | GUD300 |
|---|---|
| POP Information | |
| 10'' Peg Hook | 2 |
| 6'' Peg Hook | 1 |
| Unit Dimensions | |
| Height | 1.4" (3.5cm) |
| Length | 8.8" (22.2cm) |
| Depth | 3.4" (8.7cm) |
| Unit Package Dimensions | |
| Height | 5.4" (13.7cm) |
| Width | 9.3" (23.5cm) |
| Depth | 3.5" (8.9cm) |
| Master Carton | |
| Height | 6.4" (16.2cm) |
| Width | 10" (25.4cm) |
| Depth | 11.5" (29.2cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 5.4lbs (2.4kg) |
| Unit Pack Wt. | 1.6lbs (.70kg) |
| Unit Wt. | .60lbs (.28kg) |
