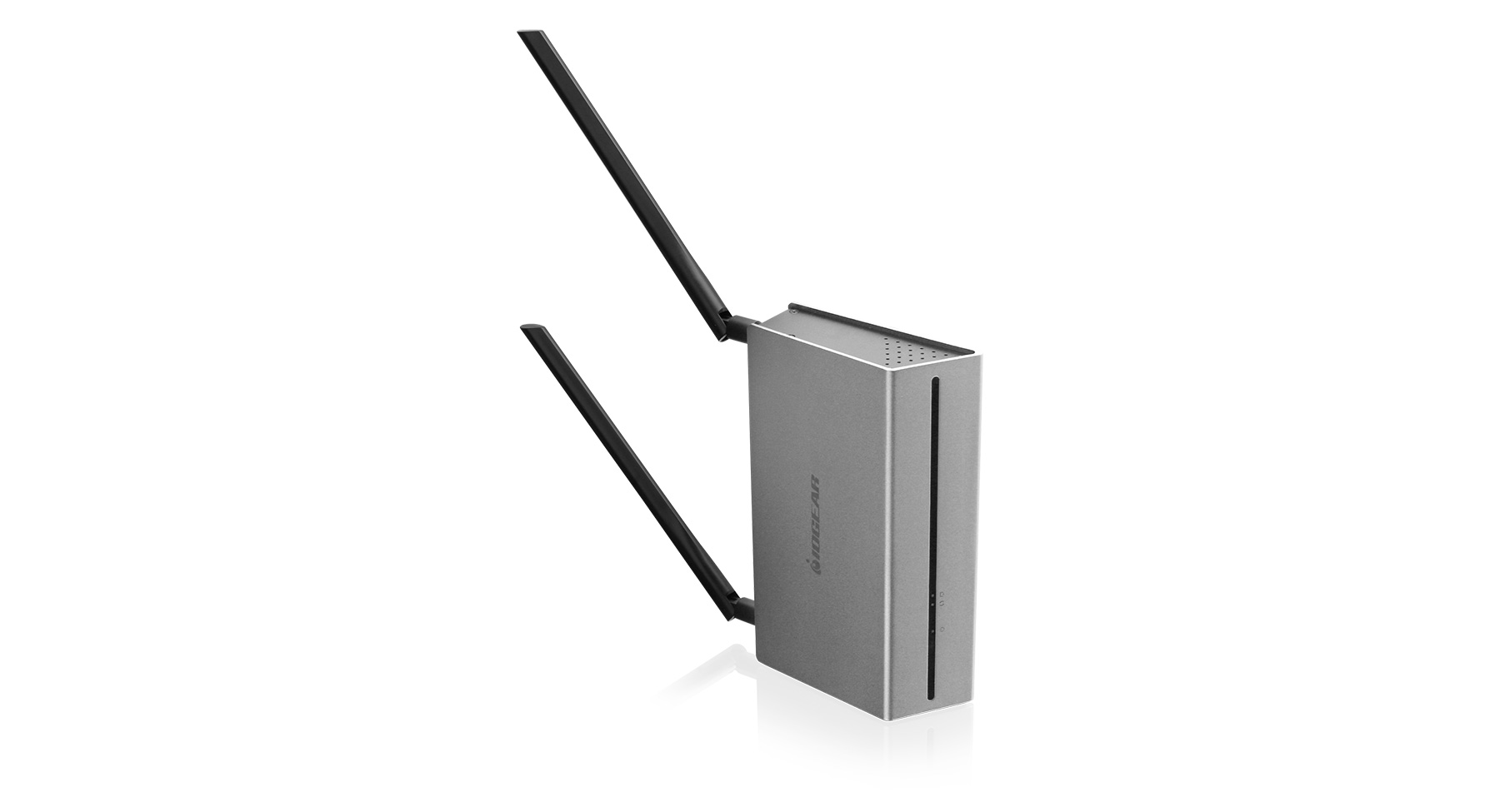

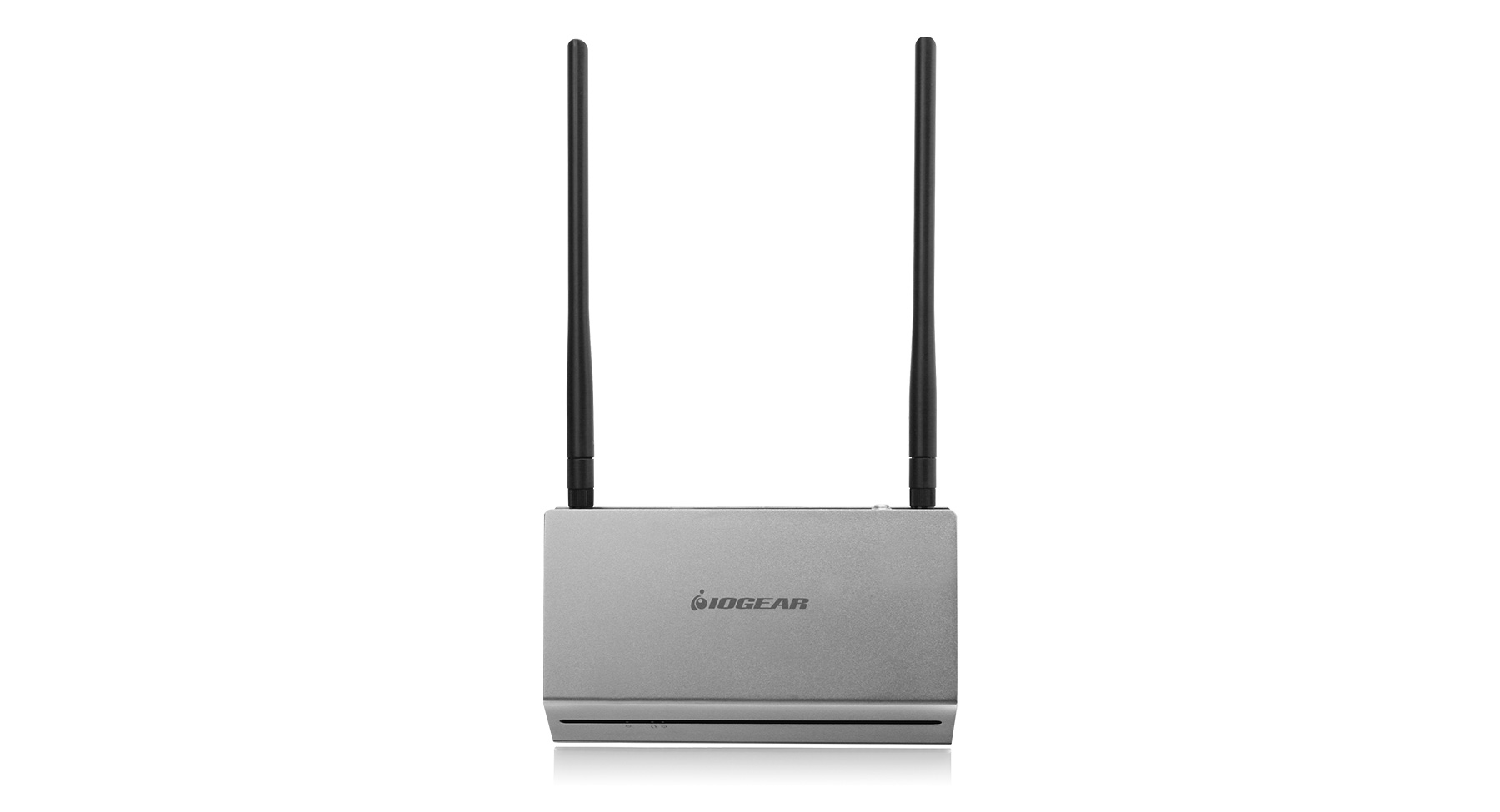

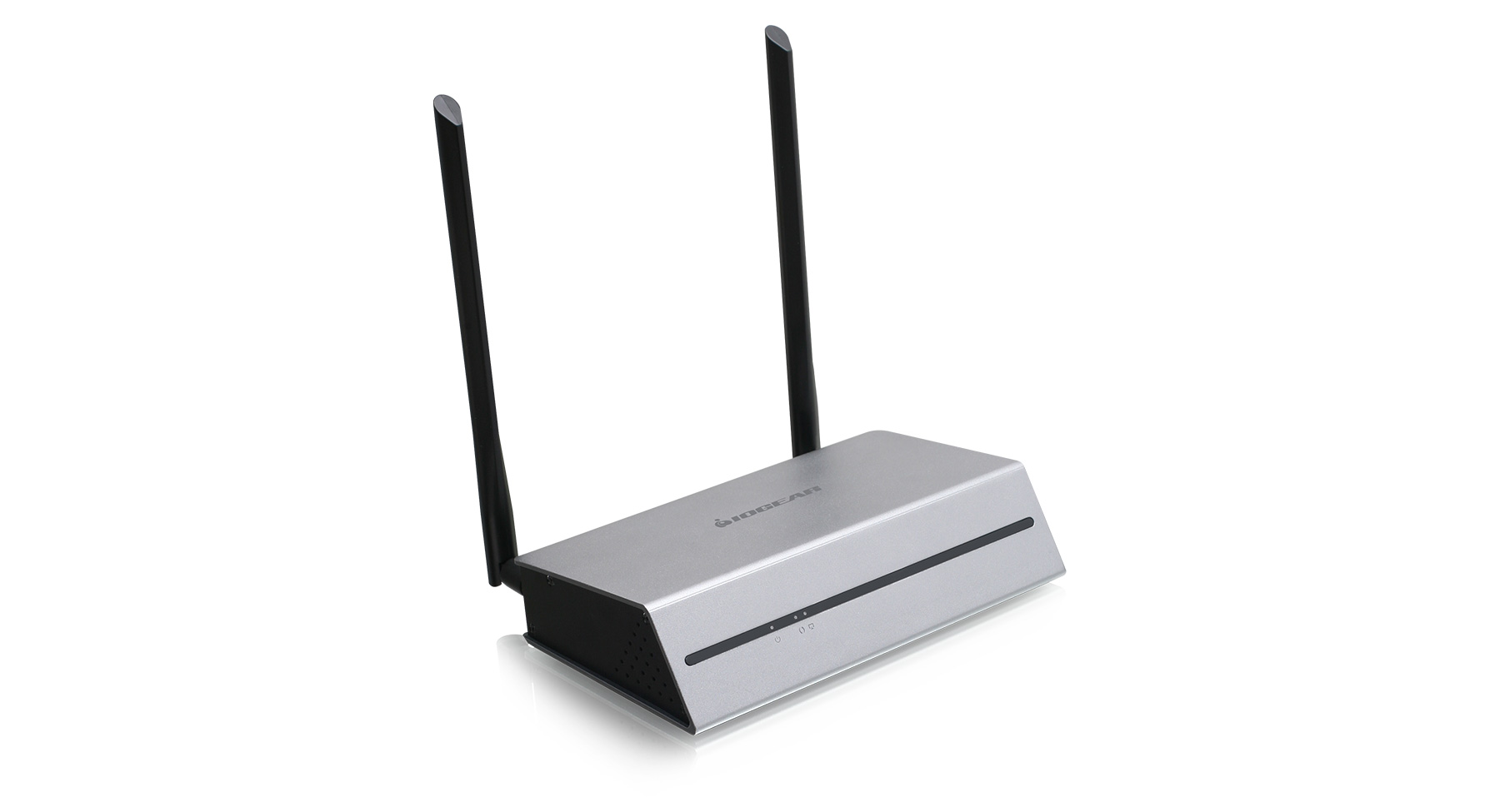

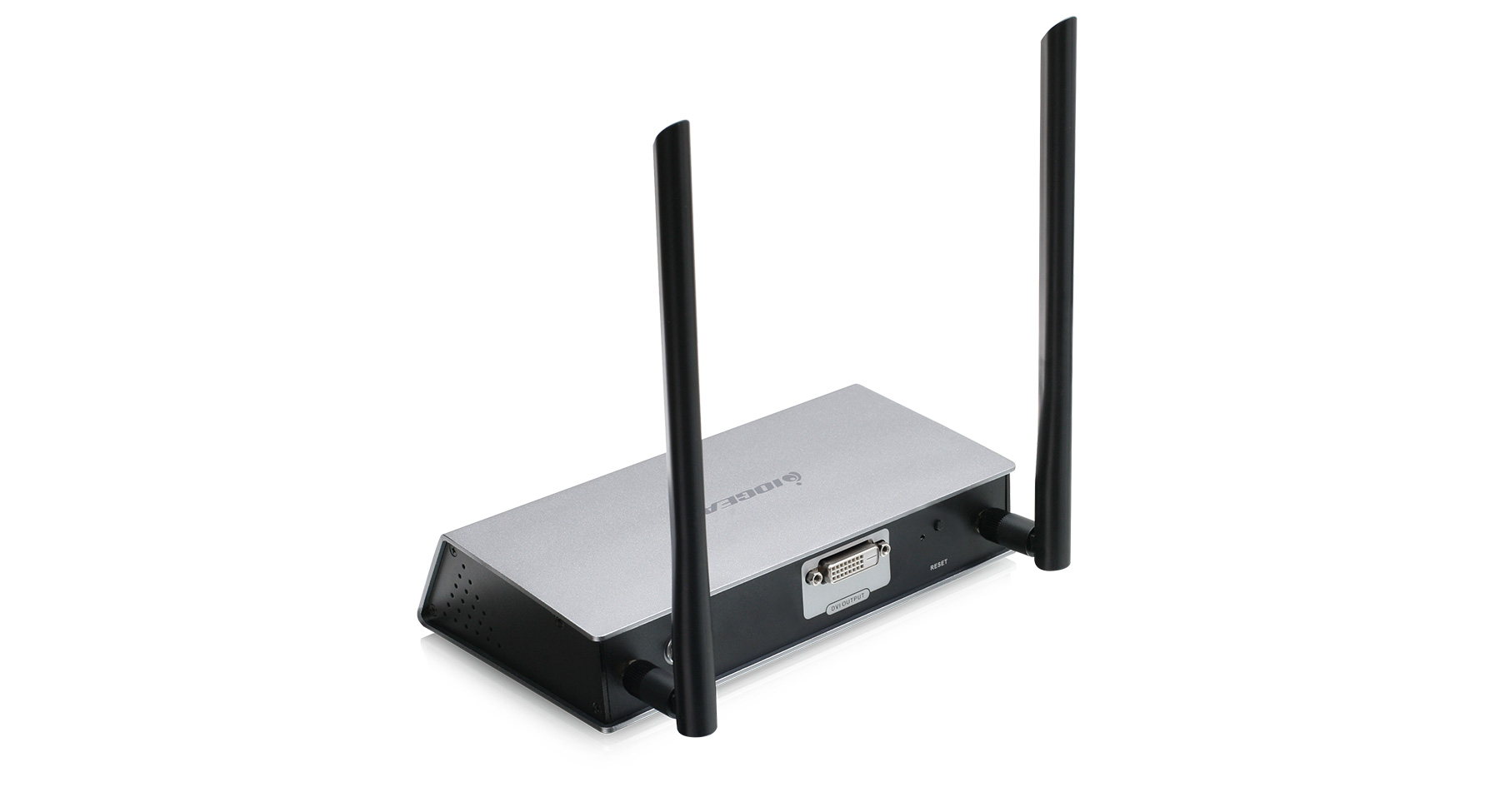

The Ultra Long Range Wireless DVI Receiver is the latest addition to IOGEAR's extensive and award winning Wireless Video lineup. Wirelessly receive A/V signals from your source device such as PC or Blu-ray player via the wireless transmitters (GWLRHDTX for HDMI, GWLRDVITX for DVI, GWLRVGATX for VGA, all sold separately), located at never before possible distances of up to 600ft (183m) line of sight.
This wireless DVI receiver works with transmitters with HDMI output (GWLRHDTX, sold separately), VGA (GWLRVGATX, sold separately), or DVI output (GWLRDVITX, sold separately). ** Ideal for application with mixed sources.
With support for HD resolutions up to 1080p, you can cut the video cords without sacrificing picture quality paired with a transmitters with various input (GWLRHDTX for HDMI, GWLRDVITX for DVI, GWLRVGATX for VGA, all sold separately). Enjoy a stunning video experience with the convenience of wireless and the flexibility to network your environment the way you want without investing in expensive wiring. Effectively eliminate cable clutter and transmit powerful long range digital signals across wide open spaces, up to 600ft. No need to run expensive video cables at long distances.
IOGEAR's Ultra Long Range Wireless DVI Receiver is ideal for digital signage and applications where A/V signals need to be transmitted long distances such as restaurants, retail stores, airports, houses of worship, concerts, sporting events and venues.
*IR is only supported between receivers and transmitter with HDMI connection, will not support receivers and transmitters with VGA or DVI connections.
**Only video is transmitted with DVI receivers or transmitters.
Note: GWLRDVITX is required for sources with DVI output; GWLRHDTX is required for sources with HDMI output, GWLRVGATX is required for sources with VGA output.
Function | GWLRDVIRX |
---|---|
Connectors | |
Power | 1 x Power Jack |
Video Resolution | 1920x1080@60Hz;1680x1050@60Hz;1440x900@60Hz; 1360x768@60Hz;1280x1024@60Hz;1280x960@60Hz; 1280x720@60Hz;1024x768@60Hz;800x600@60Hz |
Video Streaming | <200ms Latency H.264 |
Frequency | 5GHz |
Antenna Type | Dual High Gain 5 DBi |
Operating Range | Up to 600 ft |
Housing | |
Case | Metal |
Power | |
Amps | 3 A |
Voltage | 5 V |
Power Consumption | < 10 W |
Operating Temperature | 32 - 140 F |
Humidity | 10 - 95% Non-Condensing |
Warranty | 1 Year |
Video connections | |
Output | DVI-D 1.0 |
Dimensions | GWLRDVIRX |
---|---|
Unit Dimensions | |
Height | 1.75 in |
Depth | 4.50 in |
Length | 7.63 in |
Unit Package Dimensions | |
Width | 10.25 in |
Height | 6.25 in |
Depth | 3.75 in |
Master Carton | |
Width | 11 in |
Height | 14.50 in |
Depth | 13 in |
Master Carton Qty. | 6 |
Weight | |
Master Carton Wt. | 16.25 lb |
Unit Wt. w/accessories | 2.50 lb |
Unit Wt. | 1.40 lb |
