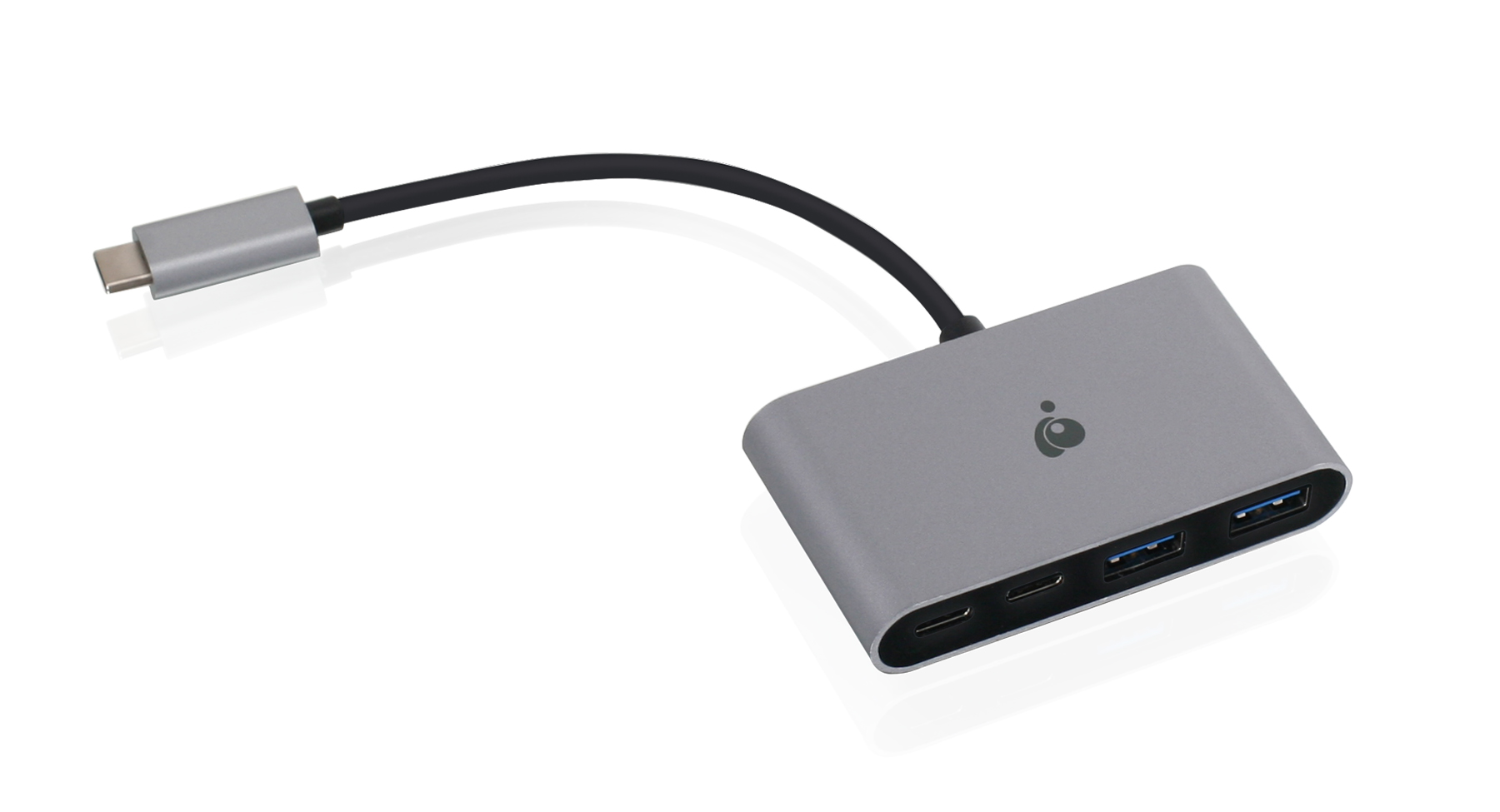

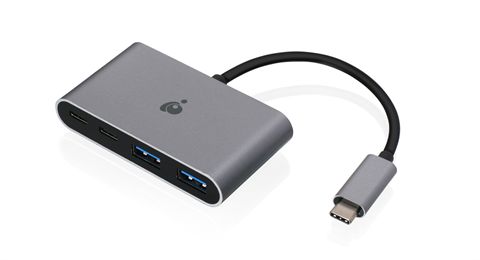

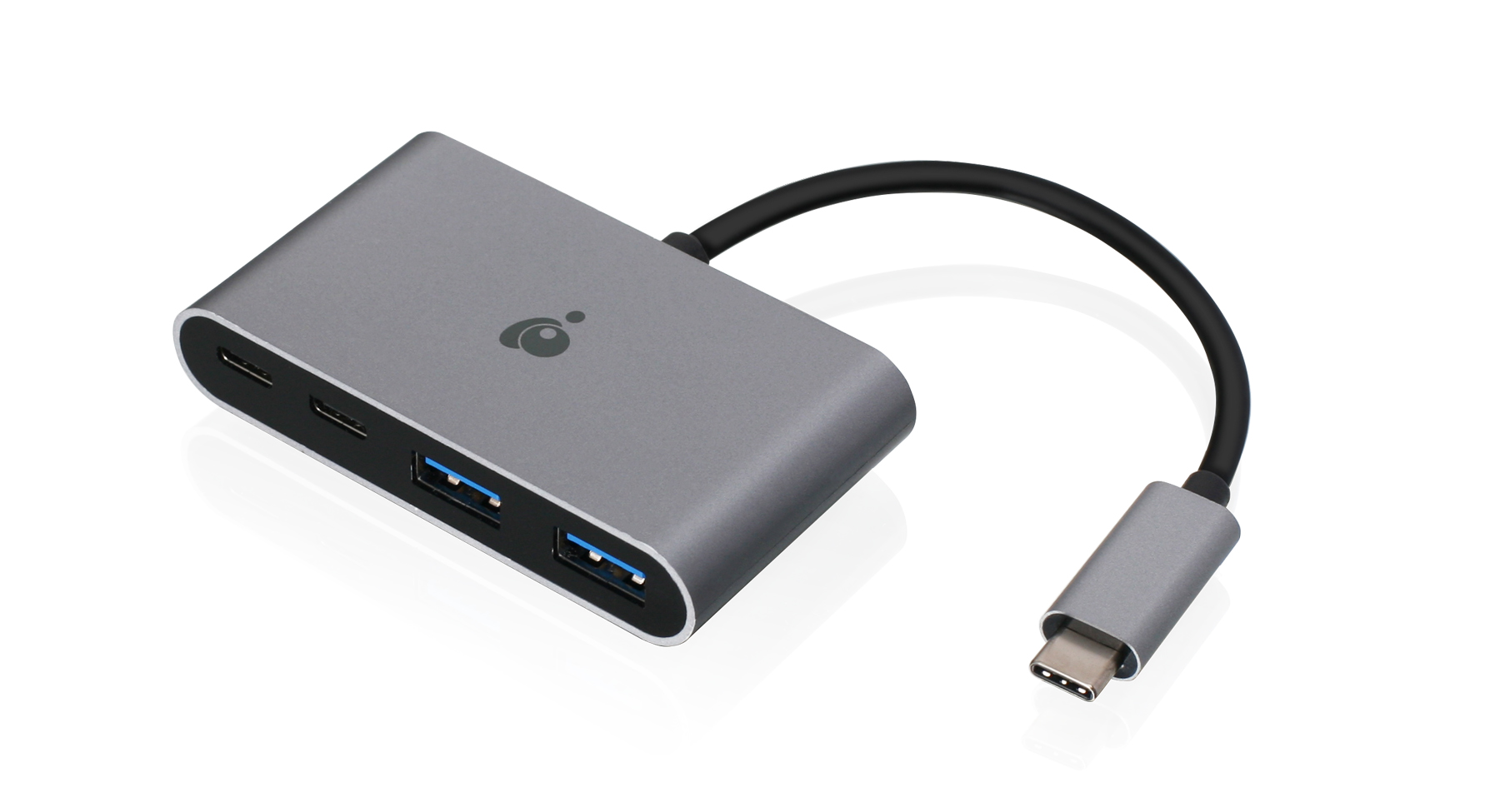

USB-C 10G 4-Port Hub w/ 100W Power Delivery 3.0 Pass-Through
GUH3C22P
- Expand any USB-C port's data & charging functionality
- Charge laptop & connected devices through 2 ports
- 2x USB-C 3.1 Gen 2 ports; 1x charges to 100W via power pass-through
- 2x USB 3.0 Type-A ports; 1x BC1.2 charging port (1.5A)
- Ultra-fast 10Gbps data transfer rate
MSRP: $55.95

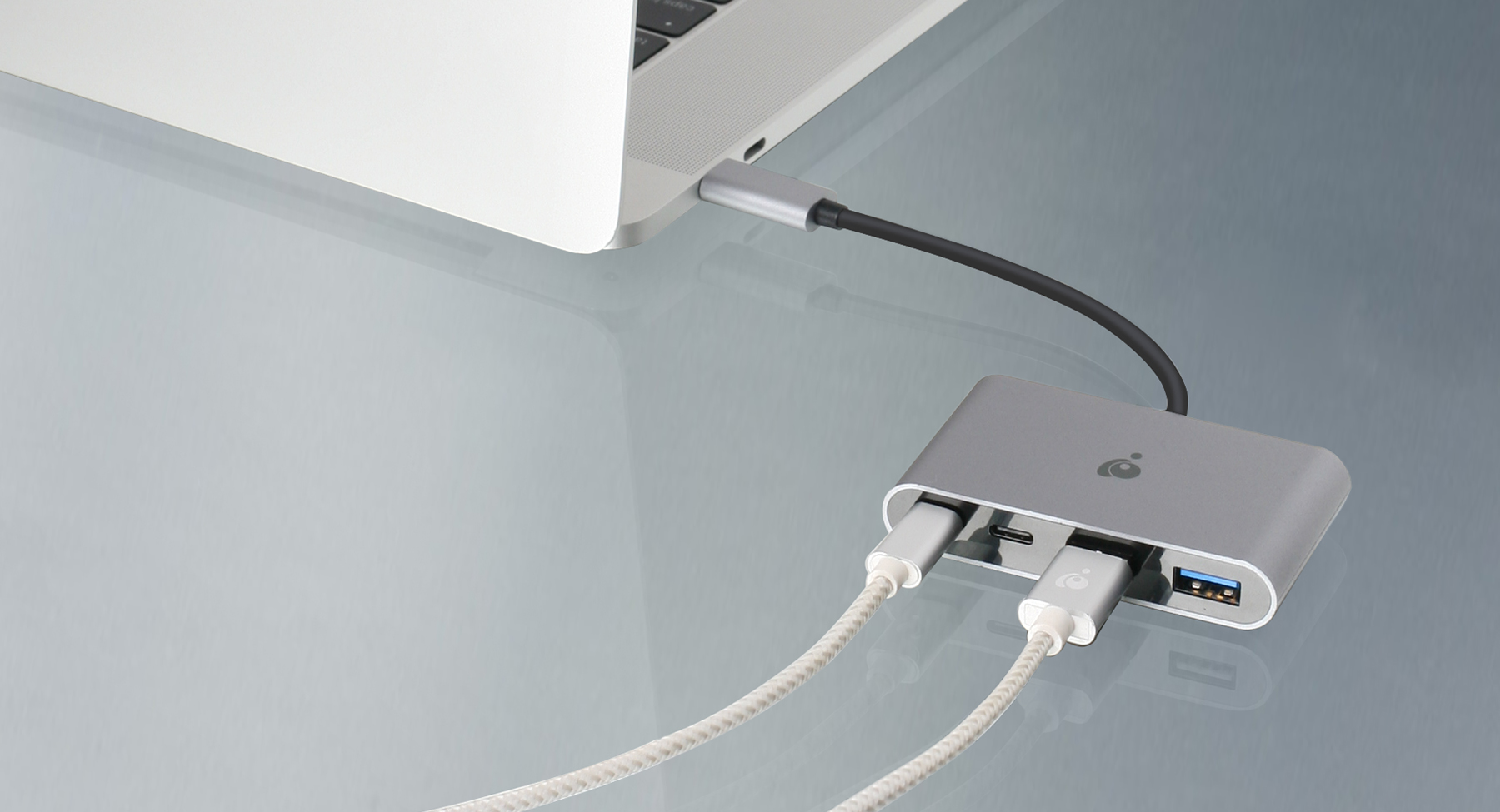

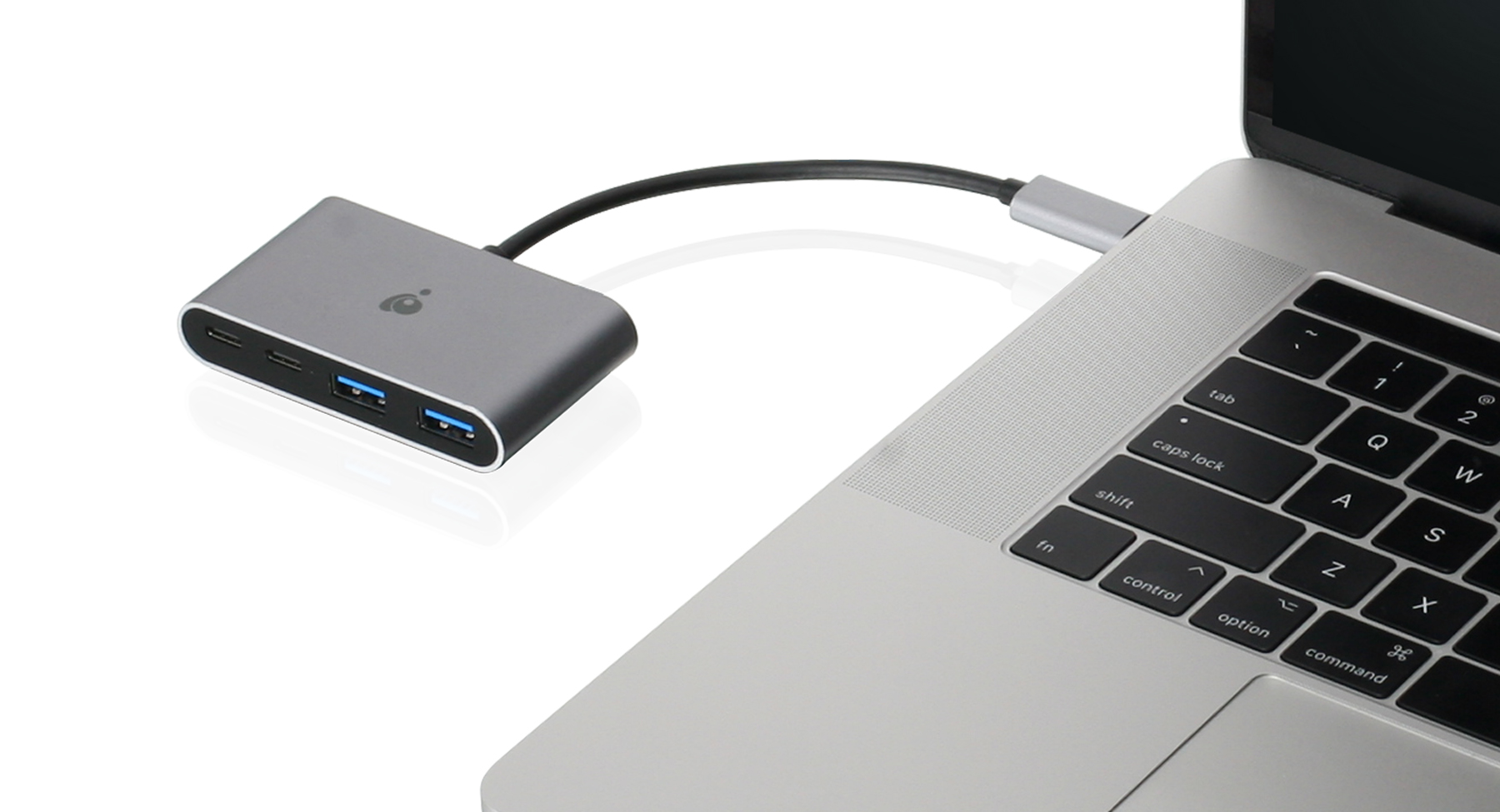

10G Hub Expands a Single USB-C Port
This 4-Port USB Hub bridges the gap between your computer and older USB technology devices. Expand a single USB-C port to connect and charge a smartphone and tablet, digital camera and peripherals such as a printer, external hard drive and much more. With the USB 3.1 Gen 2 specification, this compact hub delivers lightening-fast connectivity and file transfer capabilities. Transfer high bandwidth data like large files, photos, and video at 10Gbps speeds.
USB Type-A Expansion Ports
Immediately expand your desktop or laptop's USB-C port to accommodate up to two USB Type-A 3.0 devices while supporting older USB 2.0 and USB 1.1 legacy peripherals like a keyboard, mouse, printer, or external hard drive. Don't need the expansion port? Connect your smartphone or tablet to the ports to charge up and transfer data.
Charge Up With 100W of Power Delivery
Never worry about running out of power while using the IOGEAR USB-C 10G 4-Port Hub. Plug your laptop's original USB-C AC charger to the USB-C port to provide up to 100W of power delivery.1 Use the USB-C port to plug in and transfer data when not charging your laptop. Connect and charge USB devices through the rapid charging BC 1.2 (1.5A) USB Type-A port or the second USB Type-A port with 0.9A of charging power.
1Hub delivers up to 85W of direct charging power to a connected laptop while the hub utilizes up to 15W for the system and charging connected devices.
Maintain Power
Fast Role Swap is an advanced feature in the USB Power Delivery 3.0 specification which ensures the docking station will maintain power anytime it drops below a set threshold such as while unplugging the USB-C power adapter from the dock or during an unexpected loss of building power. This feature provides a smooth, safer operation of connected devices, so your work does not get interrupted.
- Expand any USB-C port's data & charging functionality
- Charge laptop & devices with up to100W pass-through*
- 2x USB-C 3.1 Gen 2 ports; 1x charges to 100W via power pass-through
- 2x USB 3.0 Type-A ports; 1x BC1.2 charging port (1.5A)
- Ultra-fast 10Gbps data transfer rate
- Compatible with Thunderbolt 3 (USB-C) enabled laptops & tablets
- Fast Role Swap provides safe operation for connected devices during power changes
* Power Delivery pass-through requires USB-C charger from your laptop. A total of up to 85W can be charged to the laptop after deduction of 15W is used by the dock.
** Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply.
Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W.
If your power supply is 87W, then the maximum power can be delivered to the laptop is 87W-15W= 60W.
- USB-C (Thunderbolt 3 compatible) Laptops & Tablets
- Windows 7/8/8.1/10
- Mac OS X 10.7+
- Chrome OS
- 1 x GUH3C22P
- 1 x Quick Start Guide
- 1 x Warranty Card
| Function | GUH3C22P |
|---|---|
| Upstream Port | |
| USB-C | USB 3.1 Gen 2 |
| Downstream Port | |
| USB-A | 2x USB 3.0, 1 port supports BC1.2 charging (1.5A) |
| USB-C | 2x USB 3.1 supports data, 1 port supports Power Delivery 3.0 |
| Power | |
| Power Delivery Pass-Thru | PD 3.0 / 100W (A total of up to 85W can be charged to the laptop after deduction of max 15W used by the dock) |
| Data Rate | Up to 10Gbps |
| Environment | |
| Humidity | 10% to 85% RH (no condensation) |
| Operation Temperature | 0C to +45C |
| Operating System Requirements | |
| Mac | Mac OS X 10.7+ |
| Windows | Windows 7 / 8 / 8.1 / 10 |
| Dimensions | GUH3C22P |
|---|---|
| Unit Dimensions | |
| Height | 1.65" (4.2cm) + 4.6" (11.6cm) SR cable |
| Depth | 0.55" (1.4cm) |
| Length | 2.95" (7.5cm) |
| Inner Pack | |
| Width | 5.71" (14.5cm) |
| Height | 6.10" (15.5cm) |
| Length | 7.67" (19.5cm) |
| Inner Pack Qty. | 6 |
| Unit Package Dimensions | |
| Height | 5.67" (14.4cm) |
| Depth | 1.18" (3cm) |
| Length | 5.31" (13.5cm) |
| Master Carton | |
| Width | 16.14" (41cm) |
| Height | 12.20" (31cm) |
| Depth | 6.89" (17.5cm) |
| Master Carton Qty. | 24 |
| Weight | |
| Master Carton Wt. | 6.61 lb (3kg) |
| Inner Pack Wt. | 1.1lb (0.5kg) |
| Unit Pack Wt. | 0.2lb (0.09kg) |
| Unit Wt. | 0.1lb (0.045kg) |
