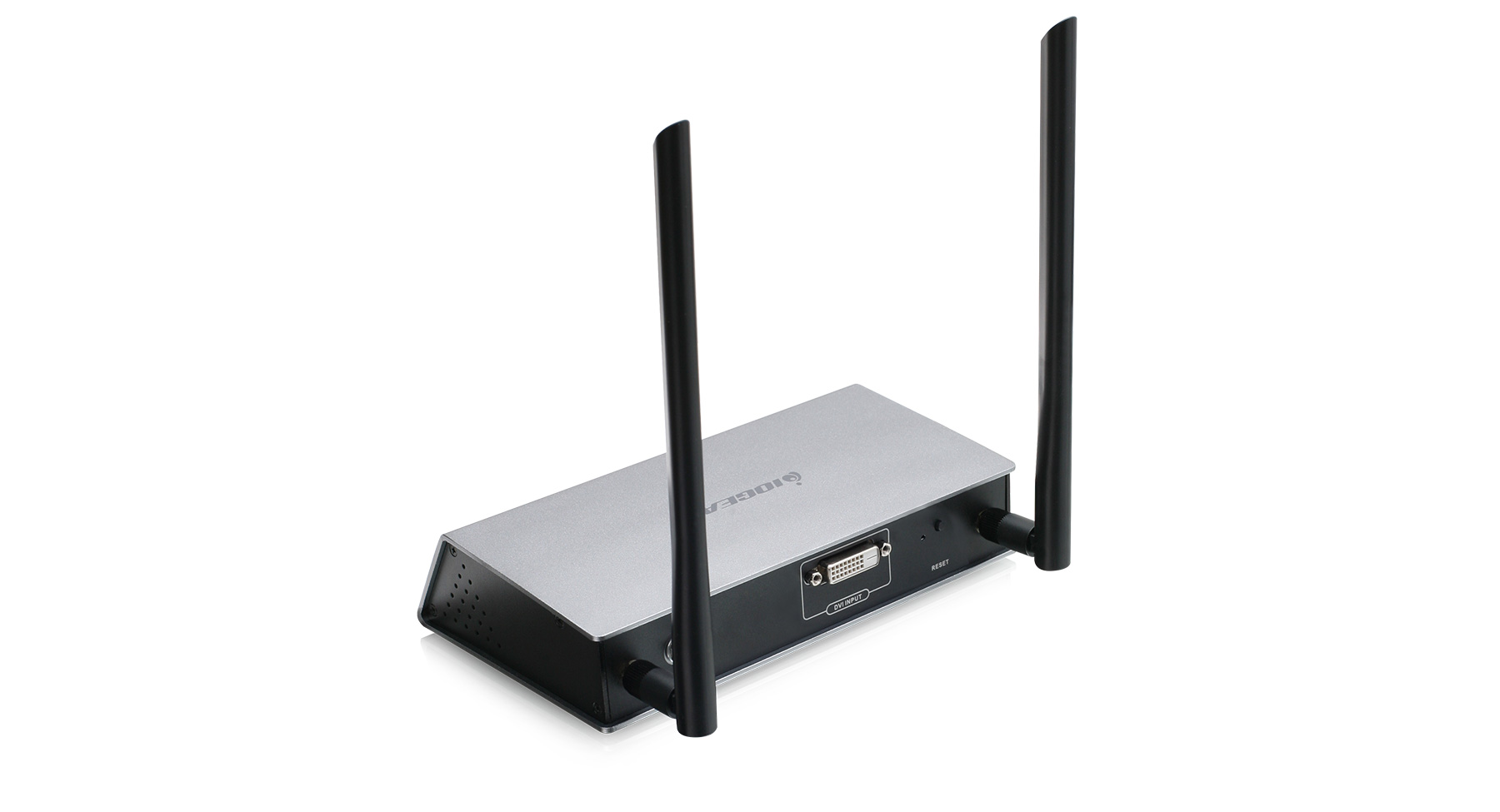

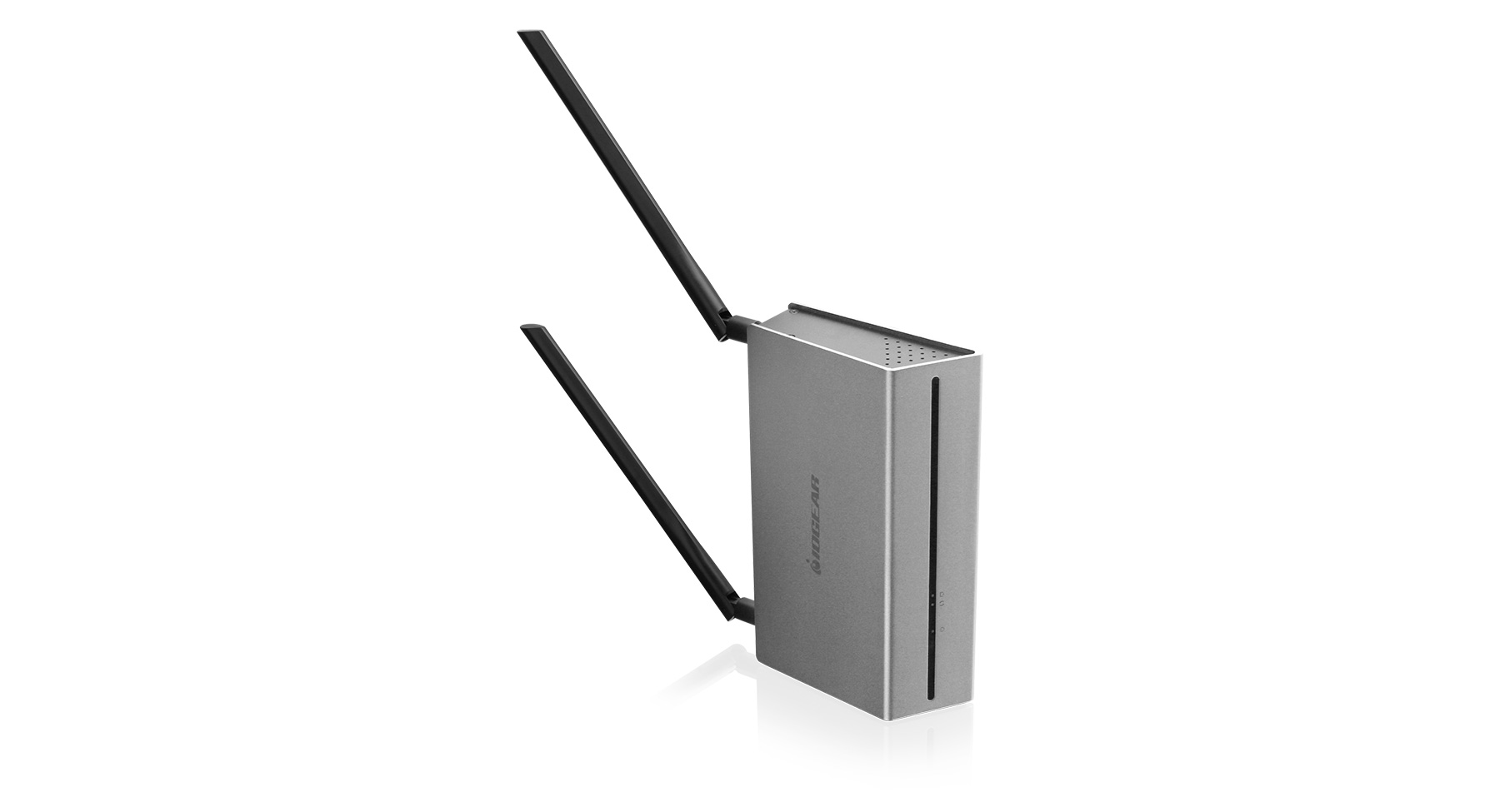

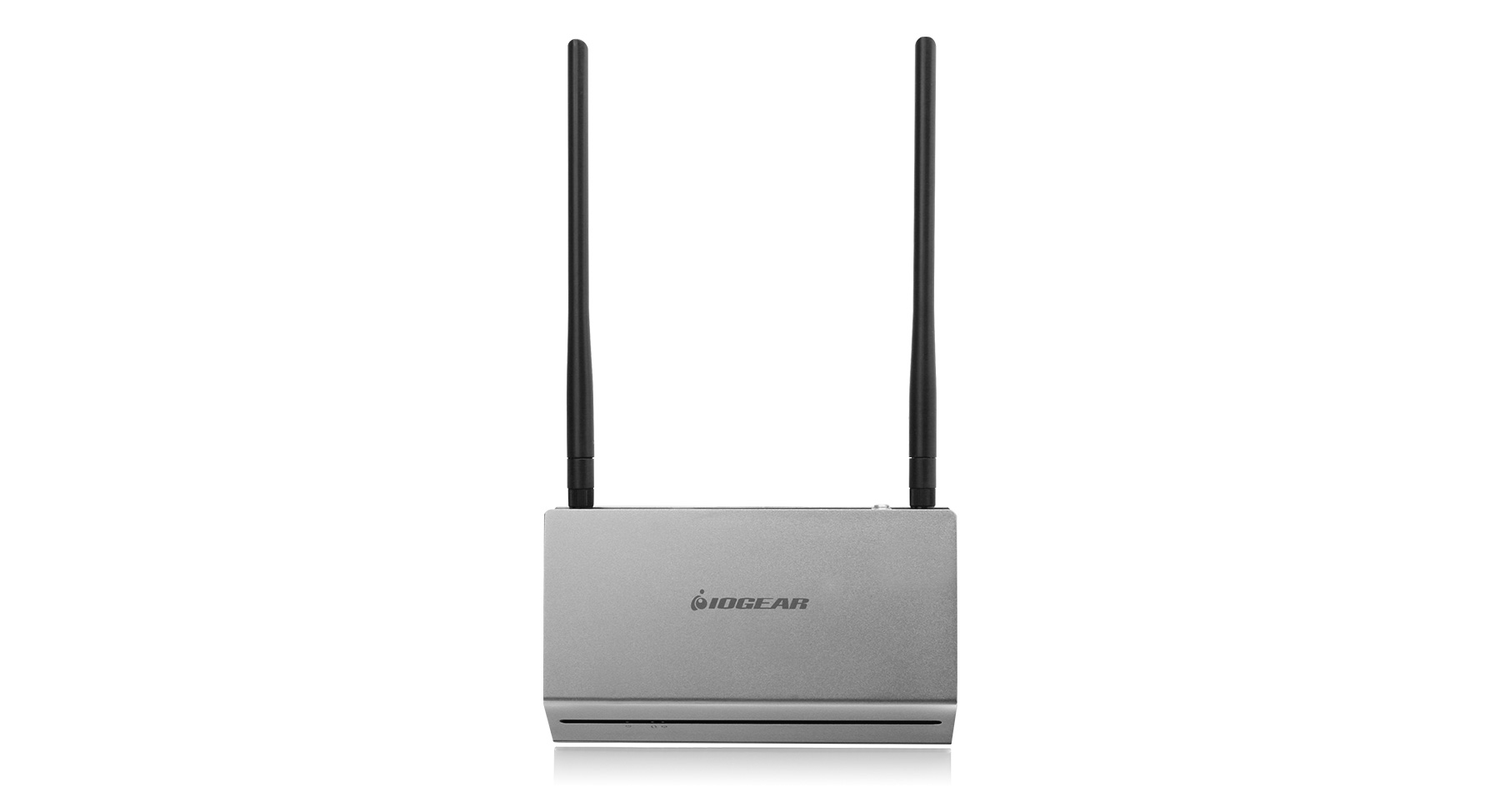

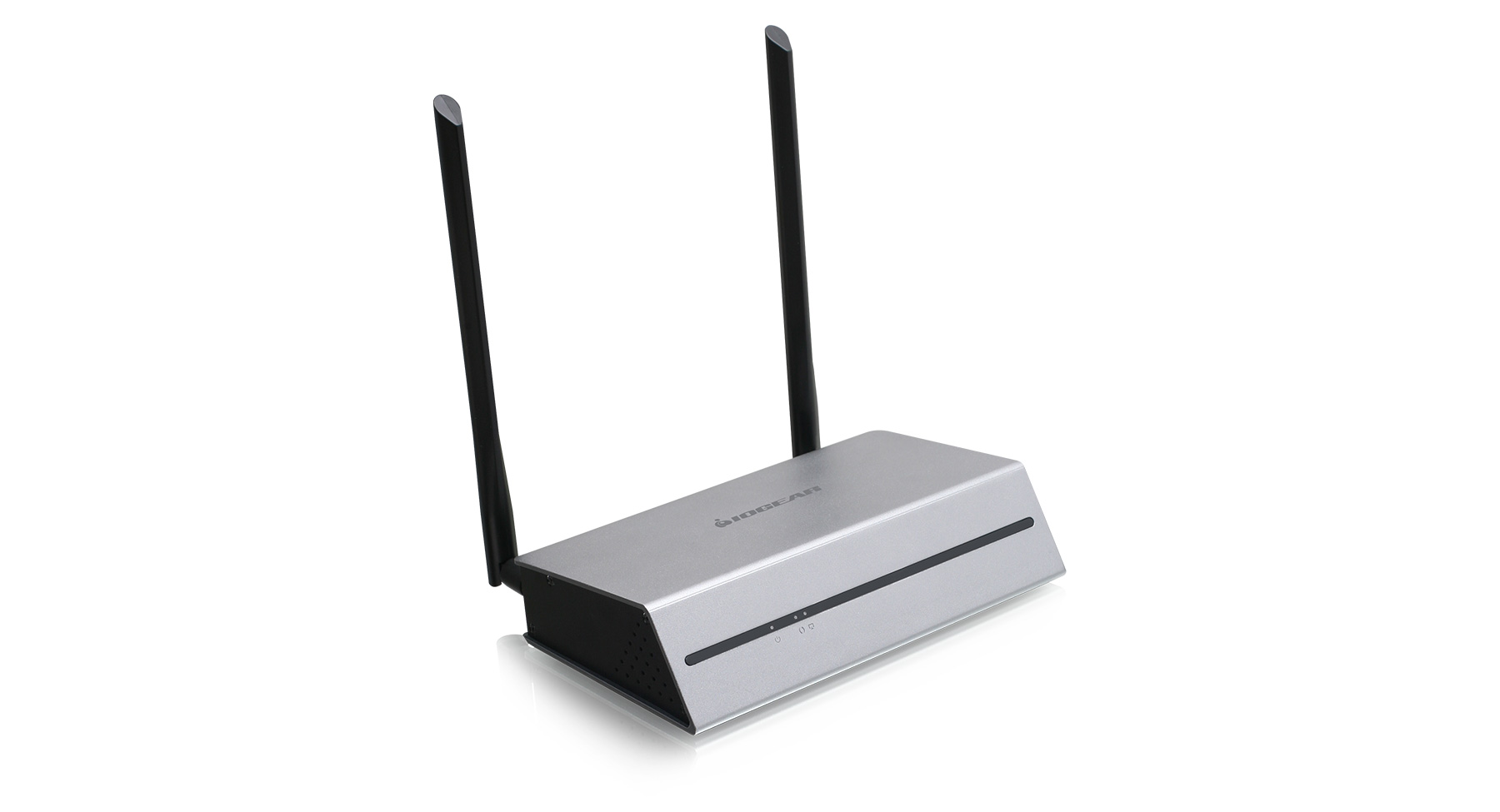

The Ultra Long Range Wireless DVI Transmitter is the latest addition to IOGEAR's extensive and award winning Wireless Video lineup. Wirelessly transmit A/V signals from your source device such as PC to a display or projector at never before possible distances of up to 600ft (183m) line of sight.
This wireless DVI Transmitter works with receivers with HDMI output (GWLRHDRX, sold separately), or receivers with DVI output (GWLRDVIRX, sold separately).
** Ideal for application with mixed DVI and HDMI displays.
With support for HD resolutions up to 1080p, you can cut the video cables without sacrificing picture quality paired with a receiver with HDMI out (GWLRHDRX, sold separately), or a receiver with DVI out (GWLRDVIRX, sold separately). Enjoy a stunning video experience with the convenience of wireless and the flexibility to network your environment the way you want without investing in expensive wiring. Effectively eliminate cable clutter and transmit powerful long range digital signals across wide open spaces, up to 600ft. No need to run expensive video cables at long distances.
IOGEAR's Ultra Long Range Wireless DVI Transmitter is ideal for digital signage and applications where A/V signals need to be transmitted long distances such as restaurants, retail stores, airports, houses of worship, concerts, sporting events and venues.
*IR is only supported between receivers and transmitter with HDMI connection, will not support receivers and transmitters with VGA or DVI connections.
**Only video is transmitted with DVI transmitters
Note: GWLRDVIRX is required for displays with DVI input; GWLRHDRX is required for displays with HDMI input.
Function | GWLRDVITX |
---|---|
Connectors | |
Video Input | DVI |
Power | 1 x Power Jack |
Video Resolution | 1920x1080@60Hz;1680x1050@60Hz;1440x900@60Hz; 1360x768@60Hz;1280x1024@60Hz;1280x960@60Hz; 1280x720@60Hz;1024x768@60Hz;800x600@60Hz |
Video Streaming | <200ms Latency H.264 |
Frequency | 5 GHz |
Antenna Type | Dual Hi Gain 5 DBi |
Operating Range | Up to 600 ft |
Housing | |
Case | Metal |
Power | |
Amps | 3 A |
Voltage | 5 V |
Warranty | 1 Year |
Operating Temperature | 32 - 140 F |
Power Consumption | < 10 W |
Humidity | 10 - 95% Non-Condensing |
Dimensions | GWLRDVITX |
---|---|
Unit Dimensions | |
Height | 1.75 in |
Depth | 4.50 in |
Length | 7.63 in |
Unit Package Dimensions | |
Width | 10.25 in |
Height | 6.25 in |
Depth | 3.75 in |
Master Carton | |
Width | 11 in |
Height | 14.50 in |
Depth | 13 in |
Master Carton Qty. | 6 |
Weight | |
Master Carton Wt. | 15.95 lb |
Unit Wt. w/accessories | 2.50 lb |
Unit Wt. | 1.35 lb |
