Wireless Audio / Video Kit

MPN:

GUWAVKIT

UPC: 881317503626 Availability: EOL
This product is EOL and is no longer being sold.
Click here to learn about the replacement product.

Wireless Audio and Video

IOGEAR’s Wireless Audio / Video Kit is an innovative solution in delivering High Definition multimedia content stored on your computer to your home entertainment center. With the utilization of the latest Wireless USB and Ultra-wideband (UWB) technology, the wireless multimedia streaming is now more stable and more resistant to interferences and capable of lossless delivery in your home and office. The kit eliminates the cable clutter and enables you to enjoy your favorite movies, video clips, and music files streaming from your computer to the TV or stereo system wirelessly with no latency.

Connect Your PC to TV Wirelessly

The revolutionary Wireless Audio / Video Kit is a user friendly and all-in-one solution in bringing wireless digital lifestyle to life. Traditional methods of connecting the PC to the TV required invasive wiring and excess cabling. IOGEAR’s Wireless Audio / Video Kit offers professional installers and consumers a “cordless” solution in closing the gap between the PC and the TV. The kit consists of three adapters: audio for speaker connectivity, VGA for a TV and Wireless USB for the hosting PC. With few easy steps, users can eliminate cables and relocate the PC to make it an integral part of their media center. Users can easily browse Internet, watch online video, or edit spreadsheets on the flat-panel TV. The Wireless Audio / Video Kit also lets users stream music and multimedia content wirelessly in-room from the PC to the home entertainment system up to 30 feet. The need of integrating a PC into the living room can now be easily fulfilled.

Click here to view Frequently Asked Questions

This product does NOT connect with any other wireless technologies such as Wi-Fi, Bluetooth, cordless phones nor wireless control systems. The product is currently only available in the US market due to the Wireless regulation.

  • Eliminate Cable Clutter – Connect your computer to your TV wirelessly without the long and unattractive cable run
  • Wireless Audio – Wirelessly distribute audio content from your PC to any stereo system with 3.5mm TRS stereo audio connector
  • Wireless HD Video – Up to 720p video streaming; Support resolutions up to 1600 x 1200 or 1680 x 1050
  • Ultra-Fast – Strong and reliable wireless signals, ideal for streaming media content across the room up to 30 feet away
  • Easy & Secure – No complicated network setup or wireless interferences
  • Certified Wireless USB – Seamlessly work with other Certified Wireless USB products
  • Microsoft Windows® XP (SP2), Vista (32- / 64-bit) with available USB 2.0 port
  • 1.6 GHz processor (CPU) with 1GB of system memory (RAM)*
  • TV or audio system with 3.5mm audio jack or RCA connectors
  • Flat-panel (LCD / Plasma / DLP) TV display or Projector with VGA (RGB / PC / D-sub 15-pin) or DVI port (Does NOT work with DVI-D and CRT tube TV)

*Suggested system requirement to play online video clips in a “window” – 1.6 Ghz Atom™ with 1GB RAM, 480p video in a “window” – 1.8 Ghz Pentium™ M with 1GB RAM, 720p video in a “window” – 2.8 GHz Pentium™ M with 1 GB RAM, 720p video in “full screen” – 2.8 GHz Core™ 2 Duo with 1GB RAM

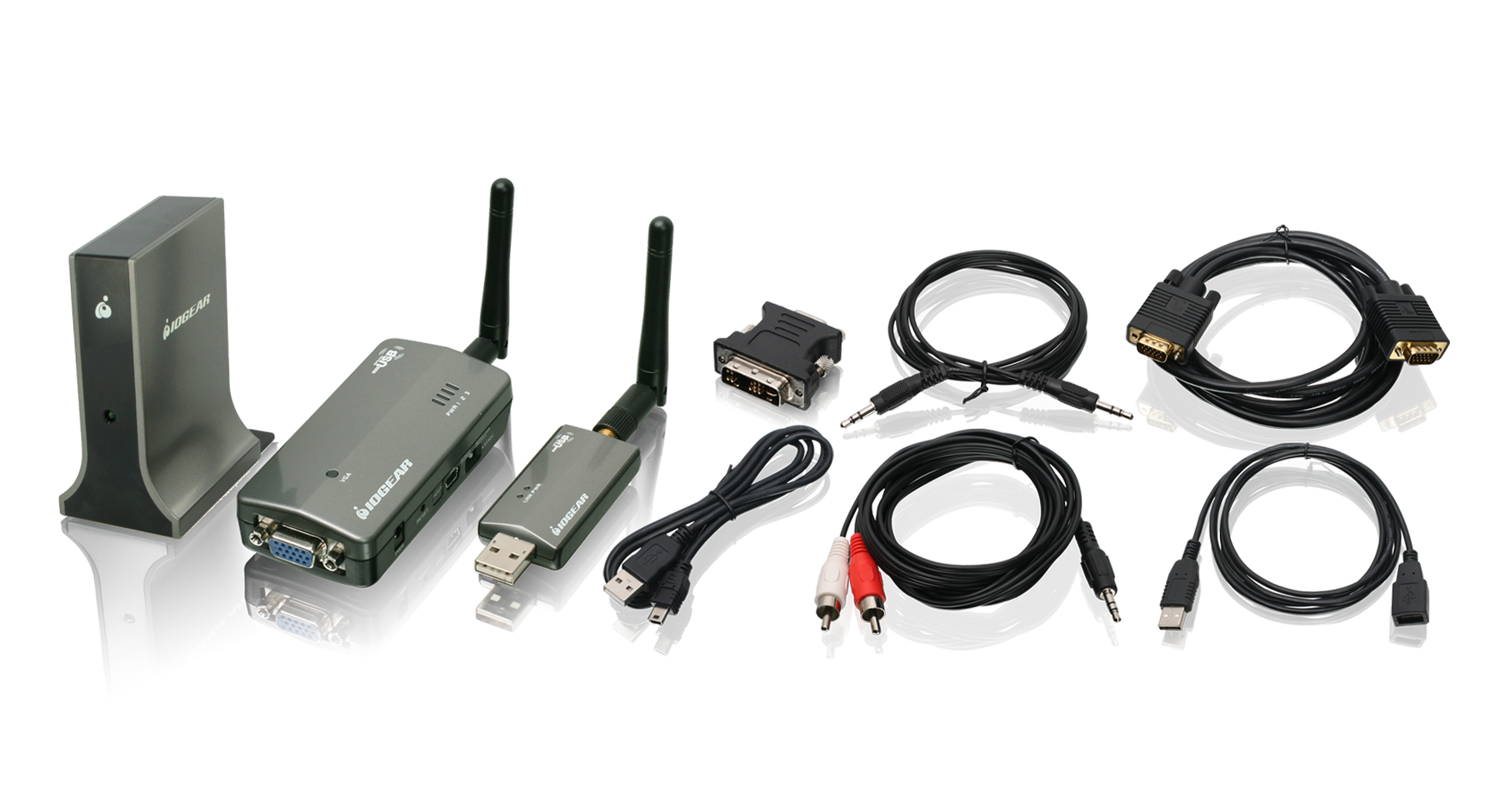

  • 1 x Wireless Video receiver (for display)
  • 1 x Wireless Audio receiver (for stereo)
  • 1 x Wireless USB transmitter (for computer)
  • 1 x USB 2.0 A to mini-B Cable (3 ft.)
  • 1 x USB 2.0 extension cable (4 ft.)
  • 1 x Gold plated VGA cable (6 ft.)
  • 1 x VGA (F) to DVI-A adapter
  • 1 x 3.5mm to 3.5mm cable
  • 1 x 3.5mm to RCA cable
  • 1 x Hook-and-loop fastener
  • 2 x Power adapter
  • 1 x User manual / Quick Start Guide
  • 1 x Installation CD
  • 1 x Warranty / Registration Card
SKU ECCN
GUWAVKIT EAR99
FunctionGUWAVKIT
Audio
Audio Output2 CH DAC output
Dynamic Range95db, THD+N -85db ~ -91db
Sample Rate8KHz, 16KHz, 44.1KHz, to 48KHz with 16-bit resolution
Antenna TypeOmni directional
Video ResolutionUp to UXGA 1600x1200 or WSXGA+ 1680x1050
Video StreamingUp to 720p
Color Depth32-bit true color
InterfaceAudio: 3.5mm TRS audio connector ; Video: VGA female connector
Frequency Band3.1GHz ~ 4.8GHz (WiMedia Band Group 1)
Number of Channel7 Channels (3 FFI + 4 TFI)
Operating RangeUp to 30 feet (10 meters)
Operating System SupportMicrosoft XP 32-bit; Vista 32/64-bit
PHY Data Rate53.3Mbps, 80Mbps, 106.6Mbps, 160Mbps, 200Mbps, 320Mbps, 400Mbps, 480Mbps
RF Modulation TypeQPSK/DCM
SecurityHighly secured wireless connection (AES 128-bit)
USB SpecificationCertified Wireless USB 1.0; Certified USB 2.0
Power SupplyAudio Adapter: 5V, 1Ah, 100-240VAC; Video Adapter: 5V, 2Ah; 100-240VAC
Environment
Humidity10-95% RH, Non-condensing
Operation Temperature0°C to 50°C
Storage Temperature0°C to 75°C
DimensionsGUWAVKIT
Unit Dimensions
WidthHost Adapter: 2.875 in; VGA Adapter: 3.9 in; Audio Adapter: 1.4 in
HeightHost Adapter: 0.5 in; VGA Adapter: 1 in; Audio Adapter: 3.65 in
DepthHost Adapter: 1.01 in; VGA Adapter: 1.85 in; Audio Adapter: 2.15 in
Unit Package Dimensions
Width9.41 in.
Height11.61 in.
Depth2.95 in.
Master Carton
Width9.75 in.
Height13.1 in.
Depth9.75 in.
Master Carton Qty.3
Weight
Master Carton Wt.9.2 lbs
Unit Pack Wt.2.8 lbs
Unit Wt.0.4 lb
