Quantum Dual Mode Thunderbolt™ 3 Dock Pro™ Station
GTD737
- Dual 4K @60Hz displays with a Thunderbolt 3 Laptop
- Single 4K @30Hz display or dual HD displays with a USB-C with DP Alt Mode Laptop*
- Power Delivery charging up to 60W via external 135W power supply
- Integrated Ethernet Gigabit network speeds (10/100/1000Mbps)
- File transfers at up to 40Gbps speeds via Thunderbolt 3
MSRP: $249.95
Expand Your Productivity
Simplify personal and professional dual 4K workspaces with the ultra-fast connectivity of the IOGEAR Quantum Dual Mode Thunderbolt™ 3 Dock Pro™ Station. Expand to a full workstation with nine (9) additional ports and a variety of high-speed connectors through the single included Thunderbolt 3 (USB-C) cable. Deliver up to 60W of charging power for USB-connected devices and your MacBook Pro or Thunderbolt-enabled Windows system via the included cable.
Dual 4K Resolutions
Professional users who need high-resolution and high fidelity for digital media content will appreciate the Quantum Dual Mode's support for two (2) 4K @60Hz displays through its dual DisplayPorts for all Thunderbolt 3 laptops. Plug in a USB-C device to maximize your productivity on two (2) 1080p @60Hz monitors for maximum real estate.
60W Power Delivery Pass-Through
Charge your Thunderbolt 3 or USB-C laptop while connected to your docking without needing to connect an additional power supply. With up to 60W of power delivery pass-through, keep all your power-hungry devices and peripherals ready to go when you need them.
Breakthrough Transfer Speed
Delivering speeds up to 40Gbps, the dock is two times faster than Thunderbolt 2 and eight times faster than USB 3.0. With this unprecedented speed, you can continuously transfer large files to external backup storage or retrieve data from other storage devices quickly without compromising bandwidth from your dual 4K displays.

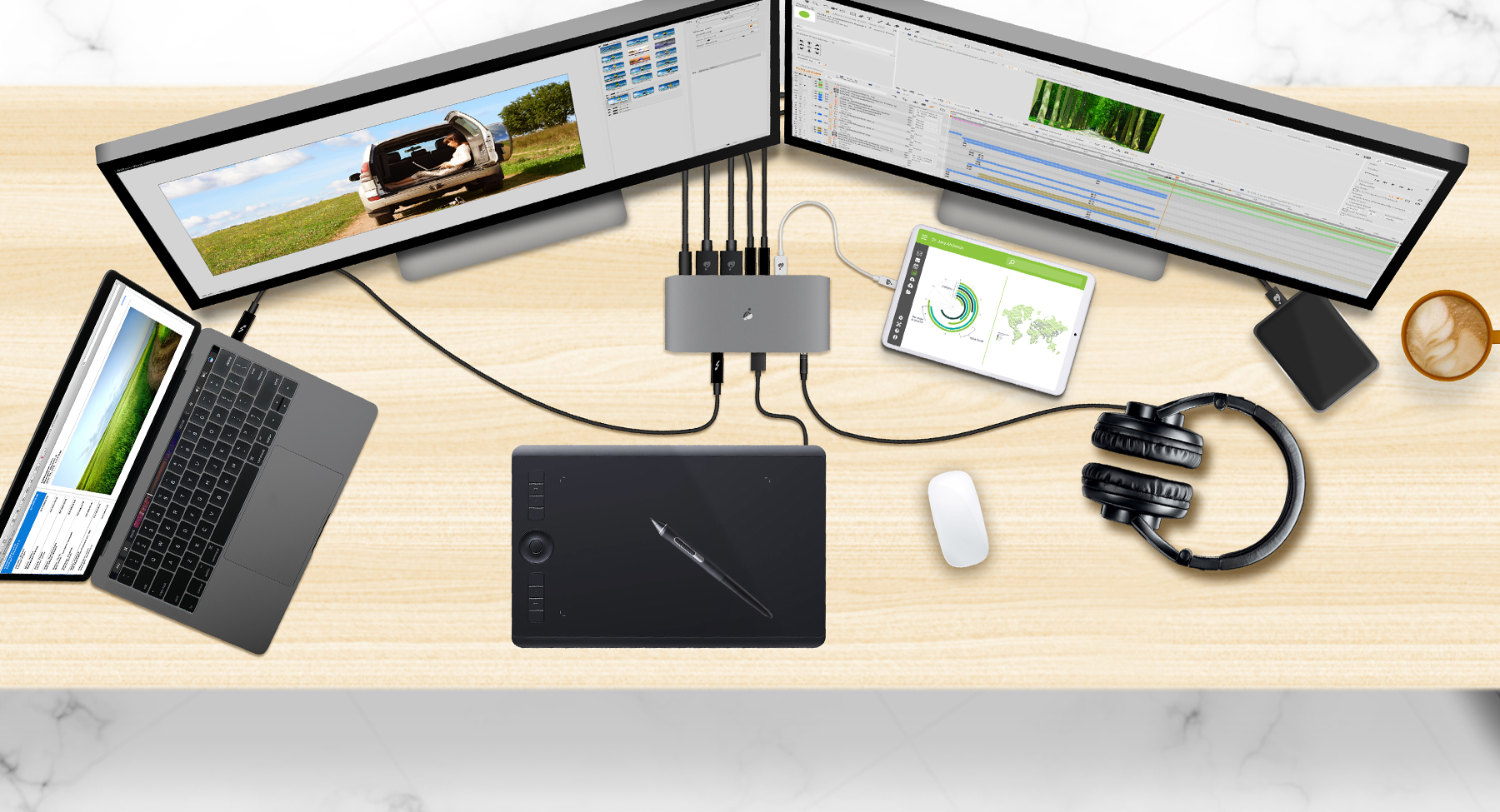

One Cable to Connect Them All

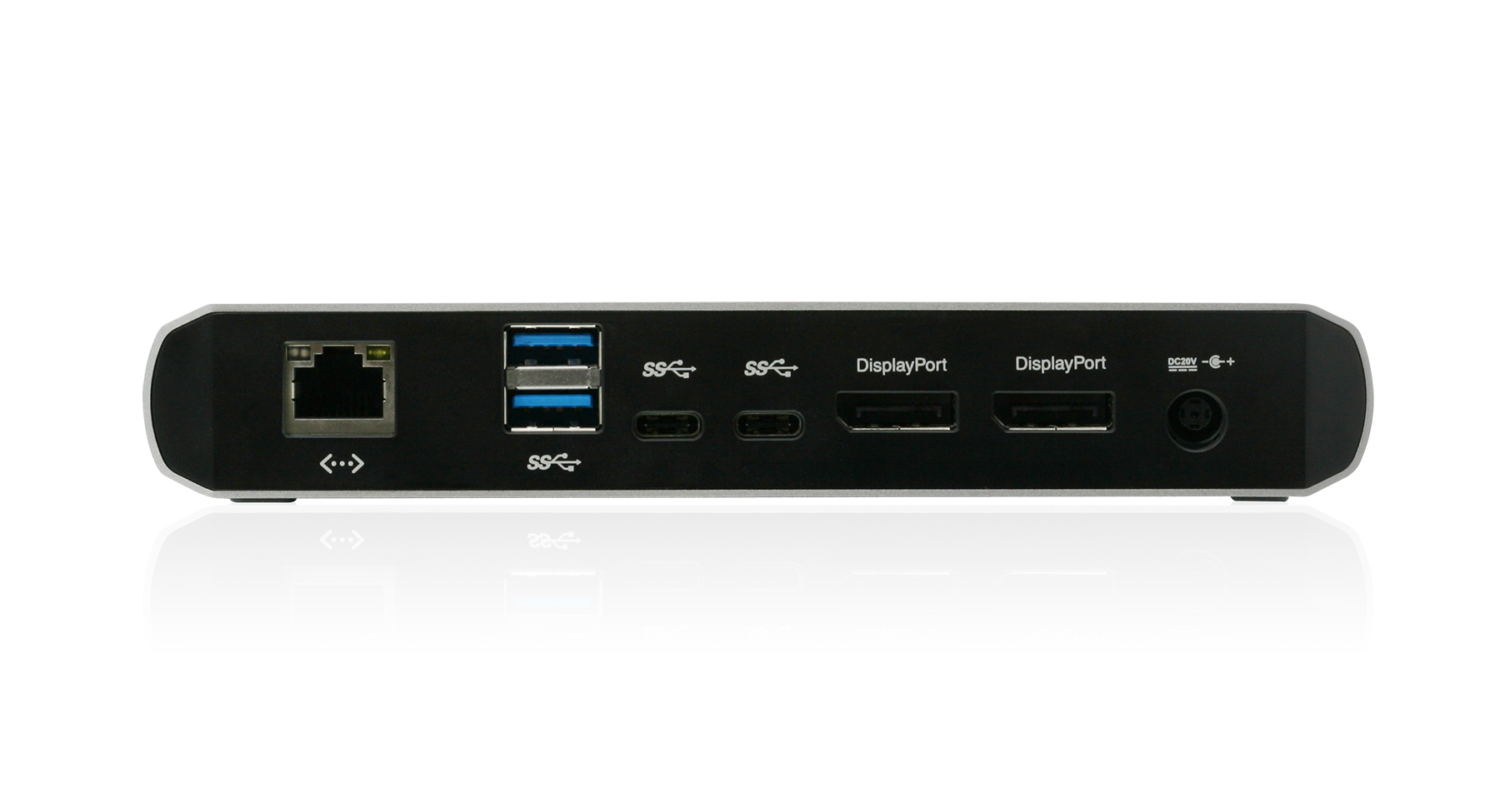

Quickly expand your laptop to a fully functional workstation with the included Thunderbolt 3 cable to access a variety of connectors. Onboard ports include an audio/speaker jack, a Gigabit Ethernet port supports your high-speed Internet connection and two (2) DisplayPorts. Or connect your mobile devices to the docking station's (3) USB 3.0 and one (1) USB-C port for data sync and charging convenience. No software needed to access the full potential of the Quantum Dual Mode Thunderbolt 3 Dock Pro Station.
Expand Your Potential at Work, Home or On The Go
- Dual 4K @60Hz displays with a Thunderbolt 3 Laptop
- Single 4K @30Hz display or dual HD displays with a USB-C with DP Alt Mode Laptop*
- Power Delivery charging up to 60W via external 135W power supply
- Integrated Ethernet Gigabit network speeds (10/100/1000Mbps)
- File transfers at up to 40Gbps speeds via Thunderbolt 3
*Laptops using USB-C DP Alt-mode ports will run dual monitors up to 1080p on Windows and dual 4096 x 2160 @ 30hz (Mirrored) on Mac OS
*New M1 Chip Macbooks with USB4 ports are limited to one external display.
- Mac OSX Sierra 10.12 or later
- Windows 10 or later
- Thunderbolt 3 (USB-C) enabled computers or computers with USB-C DP alt mode support*
*USB-C DP alt mode enabled computers will run at lower resolutions. See Features for more information.
- 1x GTD737
- 1x Thunderbolt 3 0.7m cable
- 1x AC Power adapter
- 1x Quick Start Guide
- 1x Warranty Card
| Function | GTD737 |
|---|---|
| Upstream Port | |
| Thunderbolt | Thunderbolt 3 |
| Cable Length | 2.3ft (0.7m) |
| Connectors | |
| Audio Input | 1x 3.5mm Combo headphone jack |
| USB-A | 1x USB-A(3.1 Gen 2, BC 1.2) 2x USB-A(3.1 Gen 1) |
| USB-C | 2x USB-C(3.1 Gen 2) |
| LAN | Gigabit (10/100/1000Mbps) |
| Display Output | |
| DisplayPort | 2x Displayport 1.2 |
| Cable Type | Thunderbolt 3 40Gbps |
| Resolution | Thunderbolt Mode: Dual Display up to 4096x2160@60Hz, Single Display up to 4096x2160@60Hz / USB-C Mode: Dual Display up to 1920x1080@60Hz(extended mode)Windows, Dual Display 4096x2160@30Hz(Mirror mode)- Mac , Single View up to 4096x2160@30Hz- both Mac & Wi |
| Dimensions | GTD737 |
|---|---|
| Unit Dimensions | |
| Height | 1.06" (2.7 cm) |
| Length | 6.6" (16.9 cm) |
| Depth | 3.14" (8 cm) |
| Unit Package Dimensions | |
| Height | 5.9" |
| Width | 9.17" |
| Depth | 3.3" |
| Master Carton | |
| Height | 9.44" |
| Width | 10.7" |
| Depth | 6.7" |
| Master Carton Qty. | 3 pc |
| Weight | |
| Master Carton Wt. | 9.2 lbs |
| Unit Pack Wt. | 2.75 lbs |
| Unit Wt. | 0.7 lbs |
