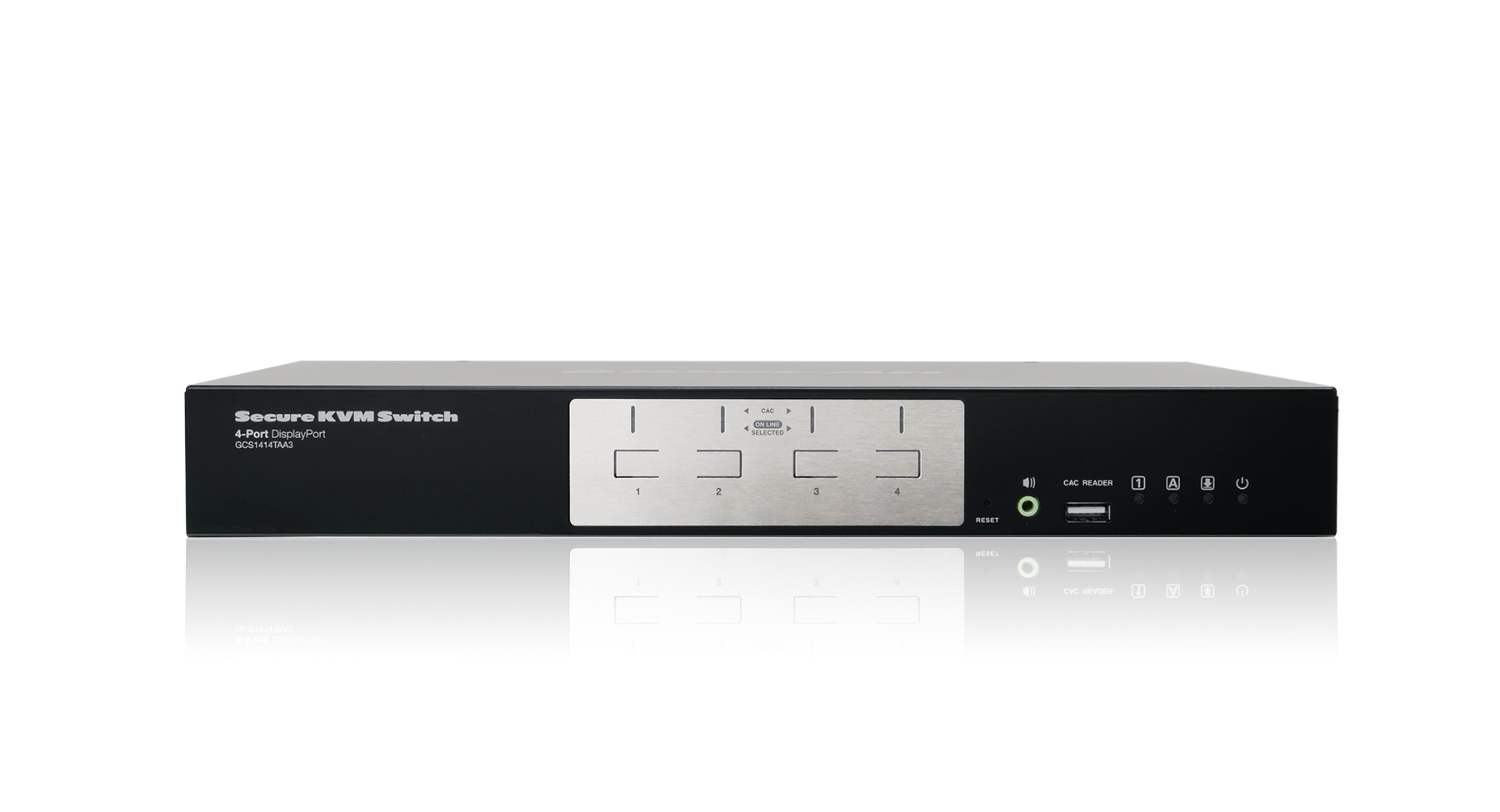

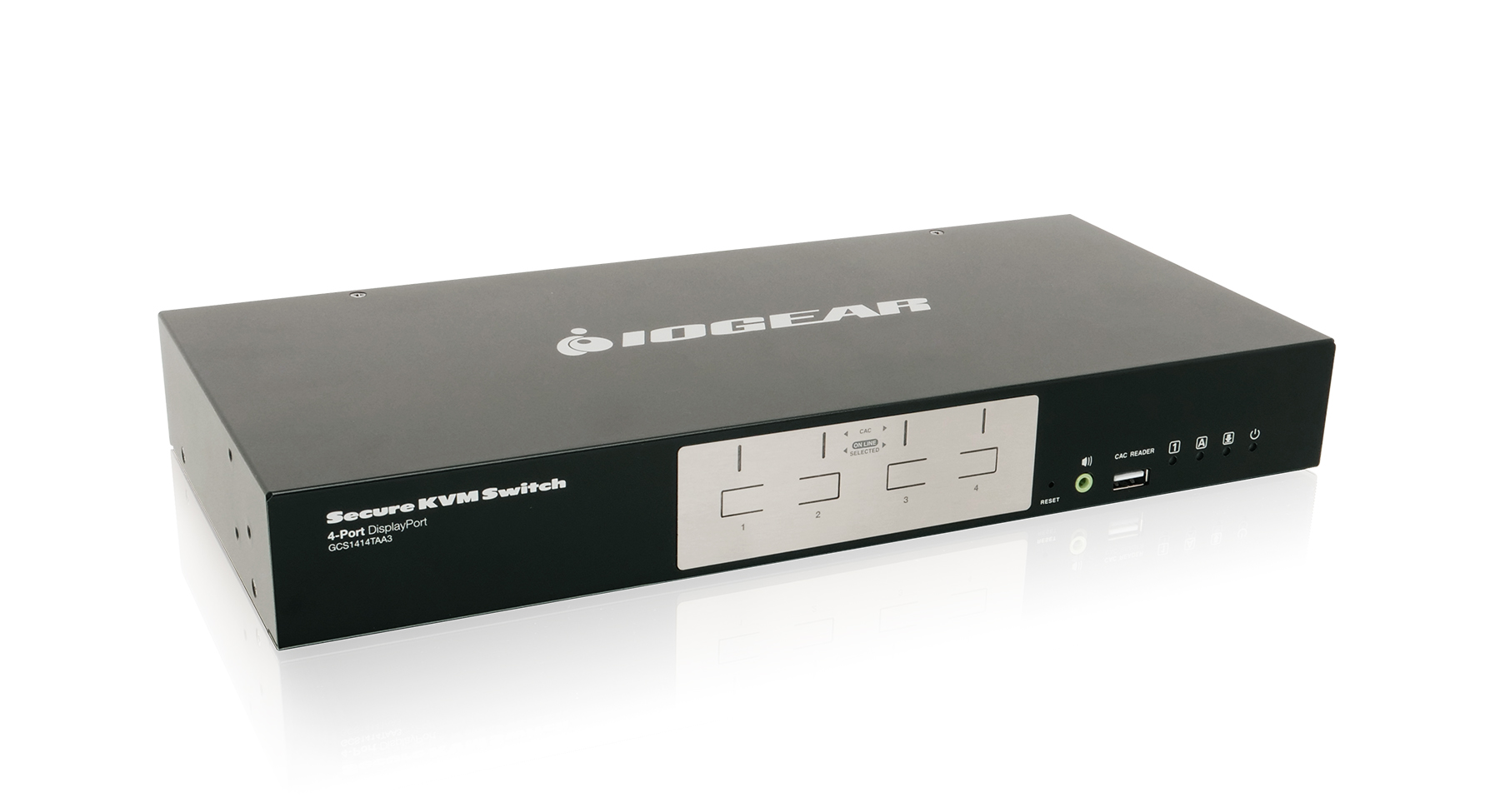

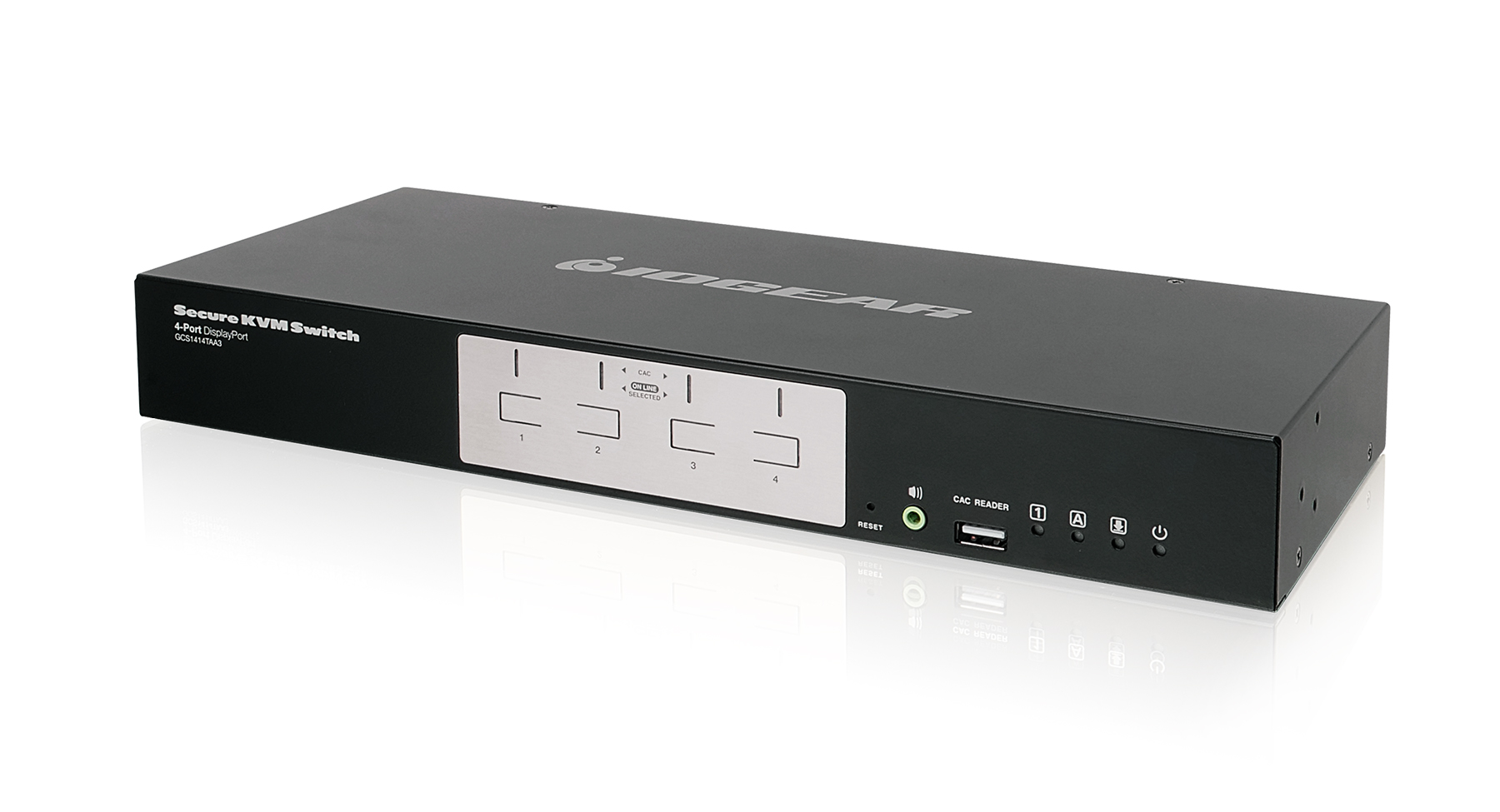

4-Port DisplayPort Secure KVM Switch (TAA)
GCS1414TAA3
- NIAP-Certified PP3.0
Validated to Protection Profile v3.0 for Peripheral Sharing Switches - CAC & Biometrics Support
Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1 - 4-Port DisplayPort Secure KVM Switch
One USB console controls 4 secure computers - Superior 4K UHD Video Resolution
MSRP: $699.95
4-Port Secure DisplayPort KVM Computer Switch - Protection Profile 3.0
IOGEAR's 4-Port DisplayPort Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements, satisfying the latest security requisites set by the U.S. Department of Defense for peripheral sharing switches.
Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs - keyboards, mice, speakers, CAC readers, and Microsoft Biometric Readers - between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM, providing high-level security, protection, and data safekeeping.
Active Tamper-Proof System
The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards, mice and other devices while ignoring commands from non-HIDs when switching between ports. The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure.
With the combination of physical and software security, IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard, monitor, and mouse (KVM) console.
Superior Video Quality
The 4-Port DisplayPort Secure KVM supports a single view display and superior 4K Ultra-HD resolutions to 3840 x 2160 @ 30Hz. For a variety of single or dual-view display connections including DVI, HDMI and DisplayPort interfaces, see the Secure KVM selector.
- NIAP-Certified PP3.0
Validated to Protection Profile v3.0 for Peripheral Sharing Switches - CAC & Biometrics Support
Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1 - 4-Port DisplayPort Secure KVM Switch
One USB console controls 4 secure computers - Superior 4K UHD Video Resolution
- UHD Resolution: 3840 x 2160 @30Hz
- Port Selection via Push-Button for Enhanced Security
Keyboard restrictions - OSD & hotkey methods are not allowed - Isolated Channel per Port
Unidirectional data flow restricts data leakage between connected computers - Active Chassis Intrusion Detection
Compromising the unit's cover renders the switch inoperable - Tamper-Evident Seals
Visually detect attempts to gain access to switch's internal components - Tamper-Proof Hardware
Integrated circuits are soldered directly onto the circuit board to hinder component sabotage - Non-Reprogrammable Firmware
Prevents tampering and attempts to reprogram the switch's firmware - Clears Keyboard Buffer
Data clears automatically after transmission to switch and resets - Analog Speaker Support
- Secure audio data input does not convert digital audio to analog audio
- Multiplatform Support
Windows® 2000, Vista, 7, 8, 8.1, 10, Linux, Mac OS X, & Sun - Rugged Metal Enclosure
Durable, Full Metal Chassis - Build-In, Internal Power Supply
1Compatible with Microsoft® LifeCam HD-3000 and Microsoft Fingerprint Reader
- Console
- HDMI monitor capable of the highest resolution that you will be using on any computer in the installation
- Standard 104-key wired USB or PS/2 keyboard
- Standard 2 or 3 button wired USB or PS/2 mouse
- Speaker (optional)
- USB Smart card or CAC (Common Access Card) reader (Optional)
- Computers
- A DisplayPort Video output connector
- A USB Type A port for keyboard and mouse
- A USB Type A port for Smart Card or CAC reader (Optional)
- A 3.5mm jack Audio port for speaker (Optional)
- Cables
- Do not attach cables that has microphone or line-in audio input
- Operating Systems
- Windows 2000, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
- Linux: Kernel 2.6+, RedHat v6.0+, SuSE v8.2+. Mandriva (Mandrake) v9.0+
- UNIX: AIX v4.3+, FreeBSD v3.51+, Sun Solaris v9+
- Novell Netware v5.0+
- Mac OS v9+
- DOS v6.2+
- 1 x 4-Port Single View DisplayPort Secure KVM Switch
- 1 x Power Cord
- 1 x Manual
- 1 x Warranty
| Function | GCS1414TAA3 |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Console Connection | 1 Direct |
| Port Selection | Pushbutton |
| Console Connectors | |
| Monitor | 1 x HDMI Female (Black) |
| Keyboard | 1 x 6-pin Mini-DIN Female (Purple); 1 x USB Type-A Female (Black) |
| Mouse | 1 x 6-pin Mini-DIN Female (Green); 1 x USB Type-A Female (Black) |
| Audio | 1 x Mini Stereo 3.5mm Jack Female (Green) |
| Microphone | N/A |
| CAC | 1 x USB Type-A Female (Black) |

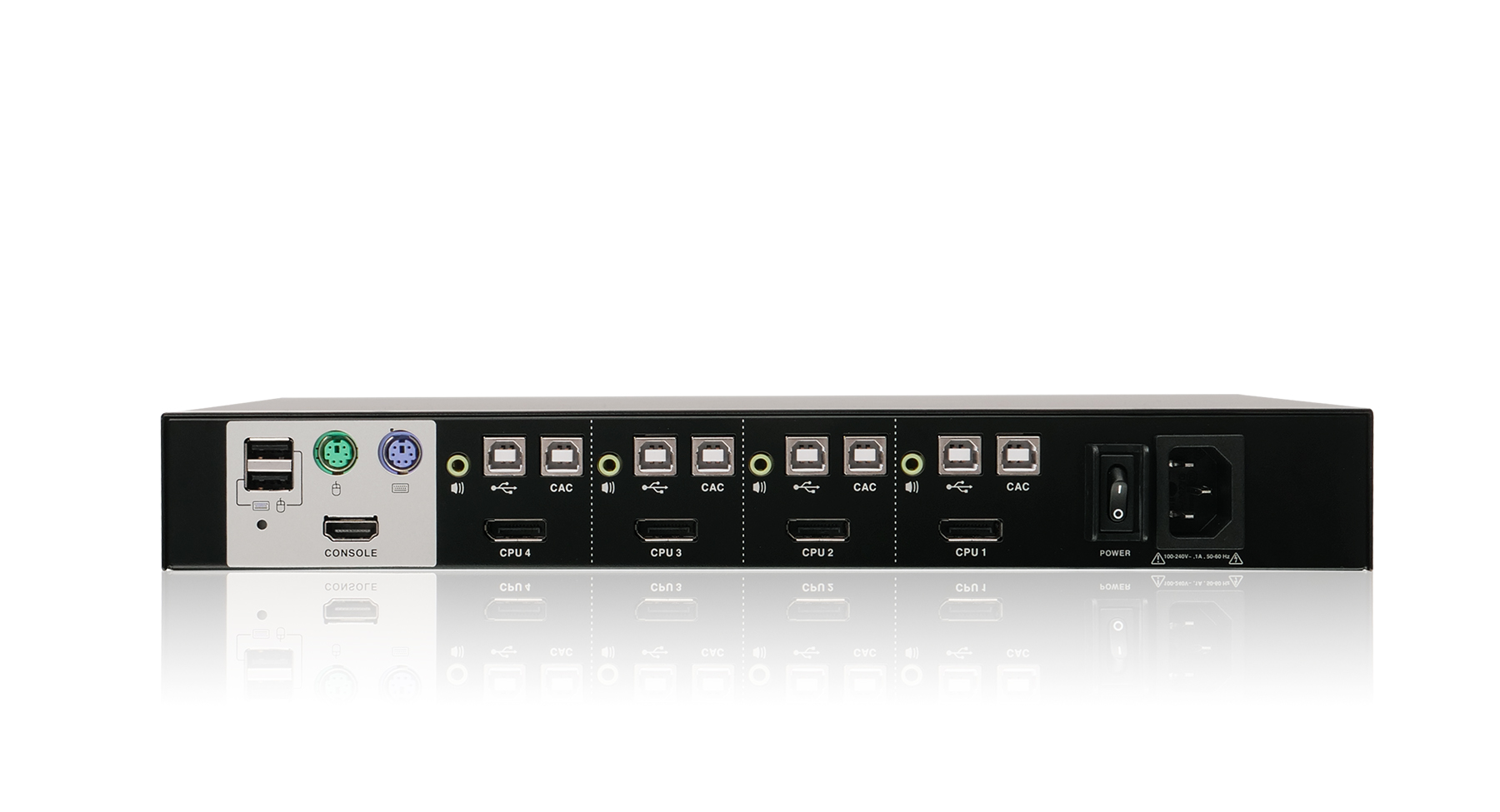

| CPU Connectors | |
| Monitor | 4 x DisplayPort Female (Black) |
| Keyboard & Mouse | 4 x USB Type-B Female (White) |
| Audio | 4 x Mini Stereo 3.5mm Jack Female (Green) |
| Microphone | N/A |
| CAC | 4 x USB Type-B Female (White) |
| Switches | |
| F/W Upgrade | N/A |
| Port Selection | 4 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 1 x Rocker |
| LEDs | |
| On Line | 4 x Orange |
| Selected | 4 x Orange |
| CAC | 4 x Green |
| Power On | 1 x Blue |
| Key Lock | 3 x Green (Num Lock, Caps Lock, Scroll Lock) |
| Console Video | 2 x Green (Rear Panel) |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | Max. 3840 x 2160 @30Hz (UHD), 2560 x 1600 @60Hz, 1920 x 1200 @60Hz, 1920 x 1080 @75Hz |
| Scan Interval | N/A |
| Power | |
| Amps | |
| Voltage | 100 - 240V, 50 - 60Hz |
| Environment | |
| Operation Temperature | 0 - 50C |
| Storage Temperature | -20 - 60C |
| Humidity | 0 - 80% RH, Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCS1414TAA3 |
|---|---|
| Unit Dimensions | |
| Height | 1.75" (4.45cm) |
| Length | 13.25" (33.66cm) |
| Depth | 6.25" (15.87cm) |
| Unit Package Dimensions | |
| Height | 4.75" (12.07cm) |
| Width | 16.5" (41.91cm) |
| Depth | 8.25" (21cm) |
| Master Carton | |
| Height | 9.5" (24.13cm) |
| Width | 17" (43.18cm) |
| Depth | 14.75" (37.47cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 16.65lb (7.57kg) |
| Unit Pack Wt. | 5.05lb (2.29kg) |
| Unit Wt. | 3.80lb (1.73kg) |
