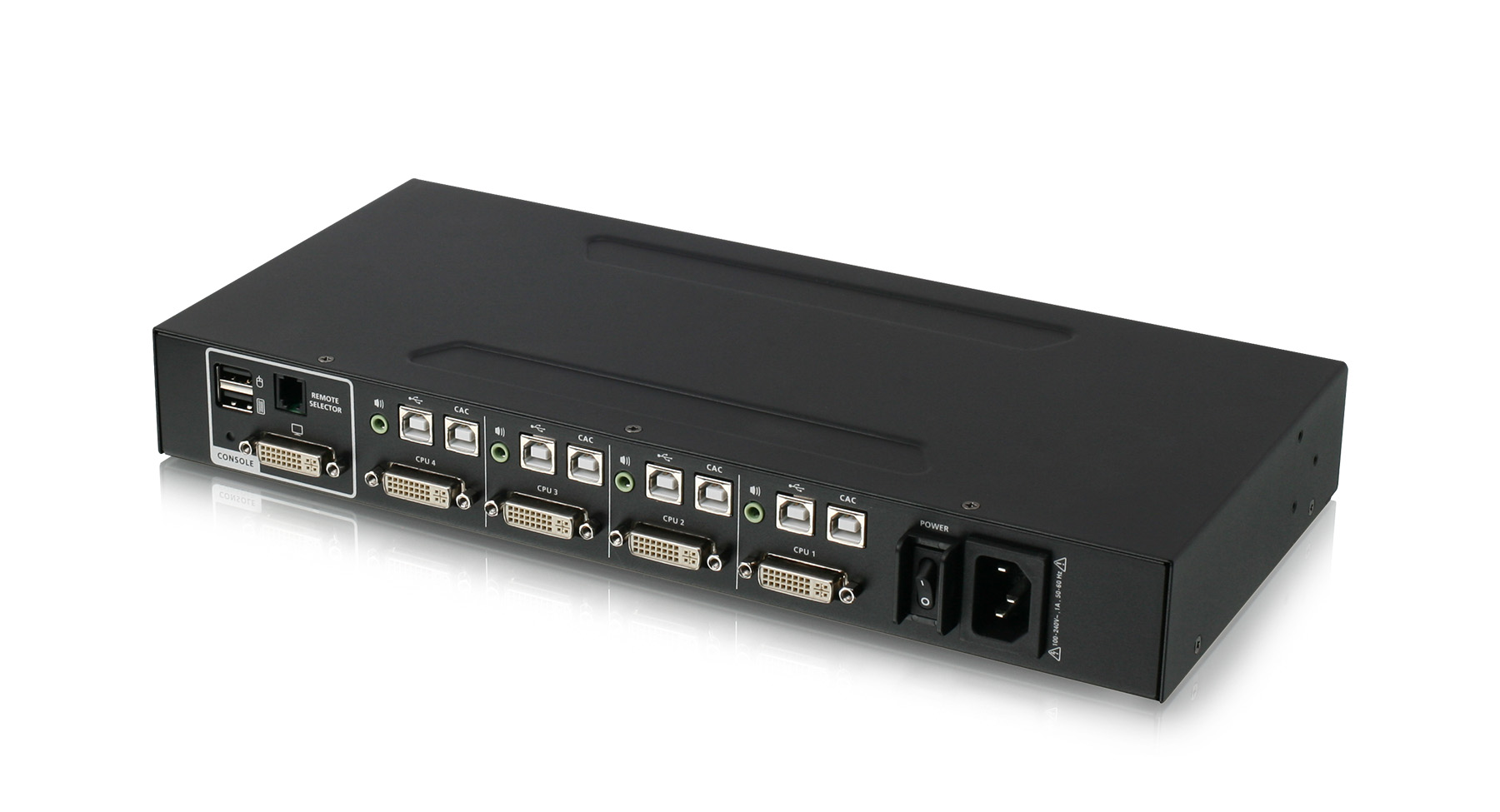

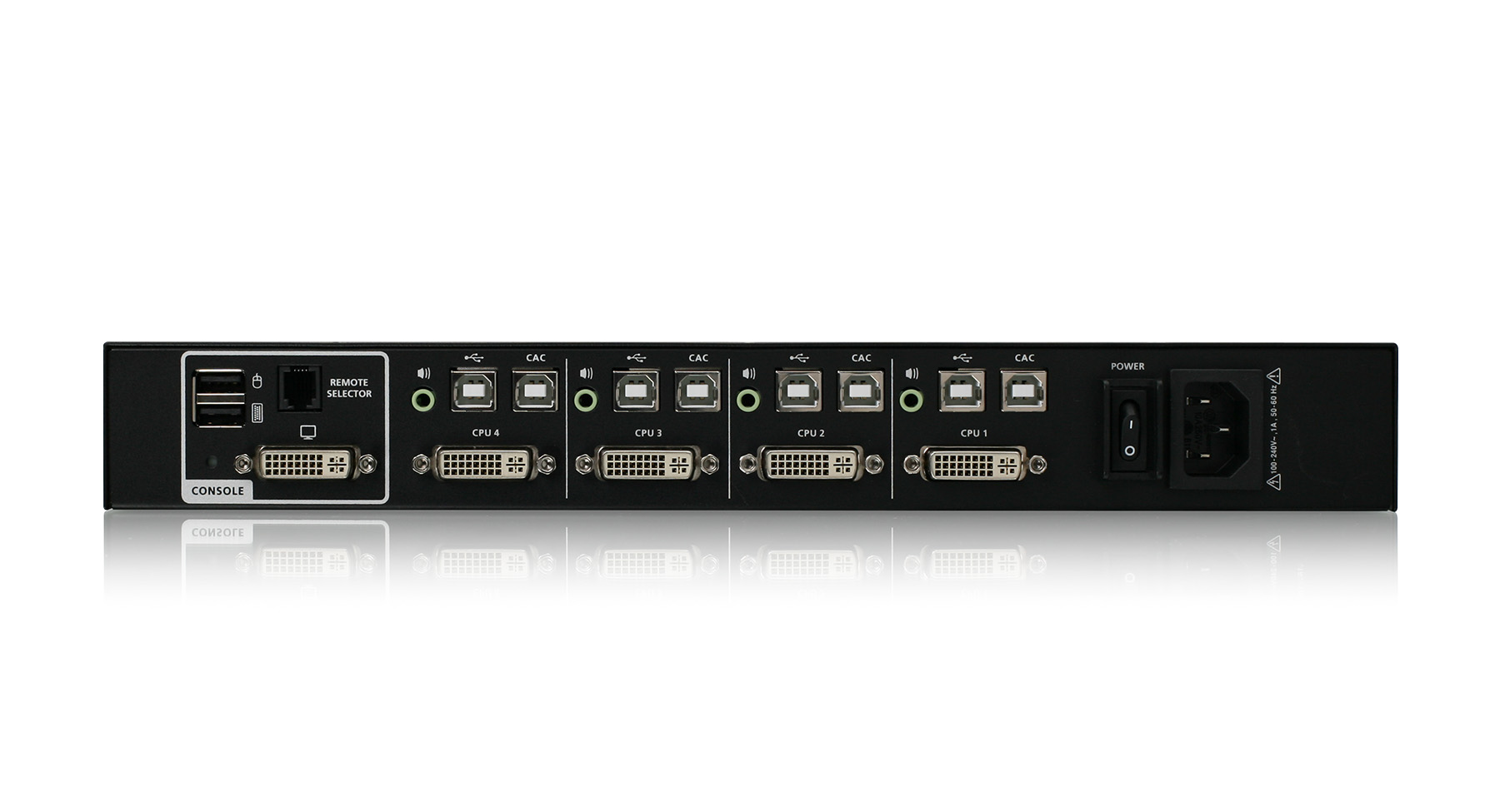

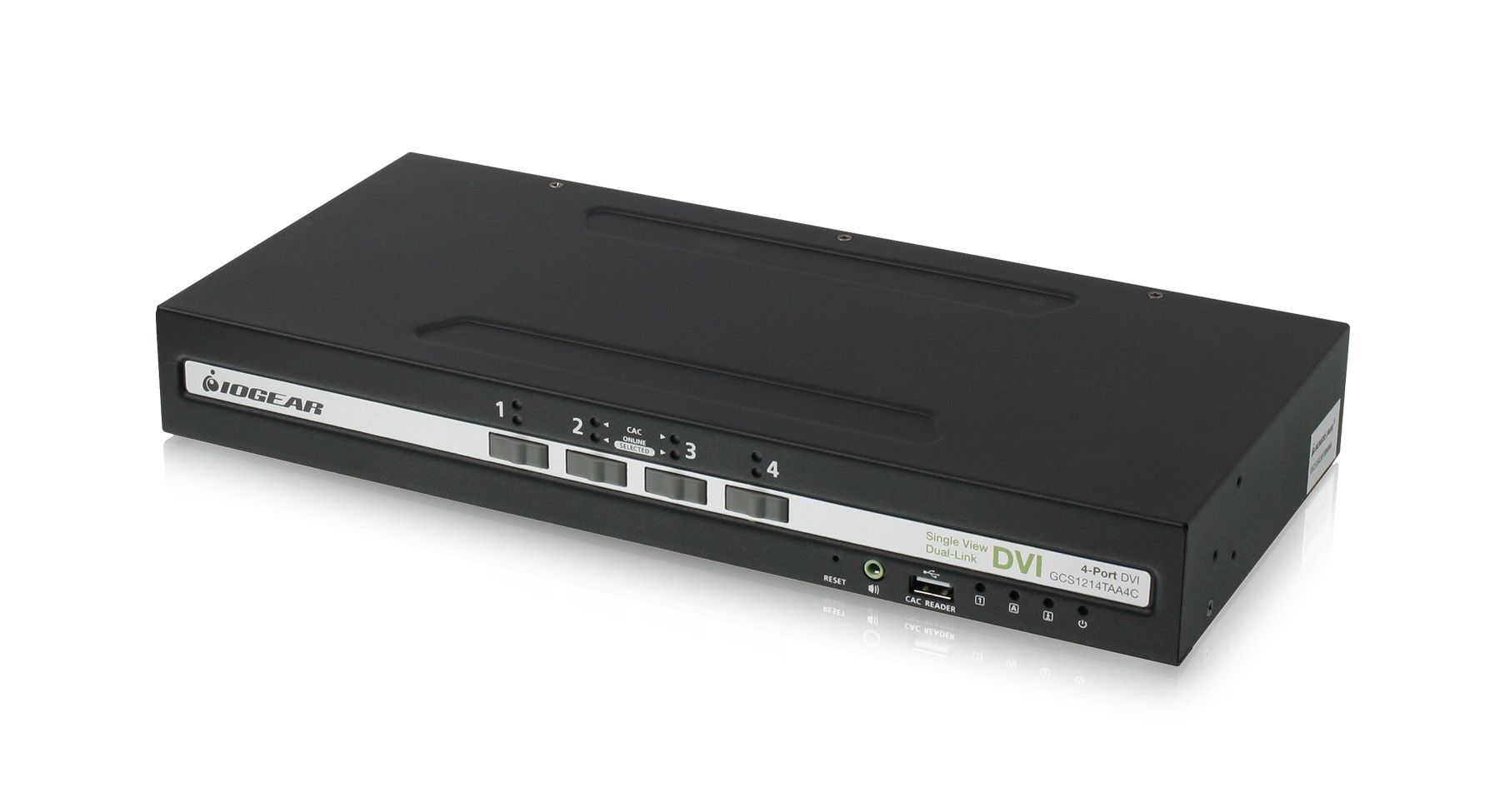

4-Port Single View DVI Secure KVM Switch w/Audio and CAC Support

4-Port Single View DVI Secure KVM with Audio and CAC Protection Profile v4.0

Secure and manage multiple data-sensitive systems from one workstation from internal and external cybersecurity threats with the TAA-compliant IOGEAR 4-Port Single View DVI Secure KVM with Audio and CAC Protection Profile v4.0. Enable authorized users secure access to up to four systems with one keyboard, mouse, a 2560x1600 @60Hz monitor and dedicated common access card (CAC) reader port.

Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switches are built for multiple interfaces and ideal for use in high-security environments that demand rigorous cybersecurity provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.

NIAP Certified, Common Criteria Compliance & TAA Compliant

IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest cybersecurity requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Superior Video Quality

The secure KVM switch supports QHD resolutions up to 2560x1600 @60Hz. With the addition of the universal KVM cables, the secure KVM switch can support any monitor port even if the monitor uses a different display standard while enabling a universal display standard.

Active Tamper-Proof System

IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, secure KVM switches offer secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

Dedicated Common Access Card Reader Port

A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.

Compatible with IOGEAR Remote Port Selector

Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.

Data Channel Isolation and Unidirectional Data Flow

IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Government, Military and Commercial Applications

The IOGEAR secure KVM switches physically isolate sensitive networks and network assets from any exposure to the public internet and only accessible with authorized permissions. Additionally, these secure KVM switches filter or block exposed USB ports on servers and desktop computers to ensure the data integrity is never compromised. Designed originally for military and federal intelligence agencies, secure KVM switches are able to serve many organizations including:

• FBI
• CIA
• NSA

• Department of Defense
• Federal departments
• State and Local Utilities

• Financial institutions
• Healthcare organization
• Law firms

• NIAP-Certified PP4.0
  Validated to Protection Profile for Peripheral Sharing Device v4.0
• CAC & Biometrics Support
  Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers¹
• 4-Port Single View DVI Secure KVM Switch
  One USB console controls 4 secure computers on 1 display
• Superior DVI Dual Link Video Resolution

           DVI Dual Link Resolution: 2560 x 1600 @60Hz

• Port Selection via Push-Button and Remote Port Selector** for Enhanced Security
  Keyboard restrictions - OSD & hotkey methods are not allowed
• Isolated Channel per Port
  Unidirectional data flow restricts data leakage between connected computers
• Active Chassis Intrusion Detection
  Compromising the unit's cover renders the switch inoperable
• Tamper-Evident Seals
  Visually detect attempts to gain access to switch's internal components
• Tamper-Proof Hardware
  Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
• Non-Reprogrammable Firmware
  Prevents tampering and attempts to reprogram the switch's firmware
• Clears Keyboard Buffer
  Data clears automatically after transmission to switch and resets
• Analog Speaker Support
• Secure audio data input does not convert digital audio to analog audio
• Multiplatform Support
  Windows® 2000, Vista, 7, 8, 8.1, 10, 11 Linux, Mac OS X, & Sun
• Rugged Metal Enclosure
  Durable, Full Metal Chassis
• Build-In, Internal Power Supply

¹Compatible with Microsoft® LifeCam HD-3000 and Microsoft Fingerprint Reader. Please contact your Administrator for CAC and Biometric Reader authorization.

** Remote Port Selector sold separately

Console

• DVI monitor capable of the highest resolution that you will be using on any computer in the installation
• Standard 104-key wired USB keyboard
• Standard 2 or 3 button wired USB mouse
• Speaker (optional)
• USB Smart card or CAC (Common Access Card) reader (Optional)

Computers

• 1 x DVI Video output connectors
• A USB Type A port for keyboard and mouse
• A USB Type A port for Smart Card or CAC reader (Optional)
• A 3.5mm jack Audio port for speaker (Optional)

Operting Systems

• Win 7, 8, 10, 11
• Linux: Kernel2.6+, RedHat v6.0+, SuSE v8.2+ Mandriva(Mandrake) v9.0+
• Unix: AIX v4.3, FreeBSD v3.51+, Sun Solaris v9.0+
• Novell Netware v5.0+Mac OS v9+
• DOS v6.2+

• 1x GCS1214TAA4C
• 1x Power Cord
• 1x User Guide
• 1x Warranty Card
