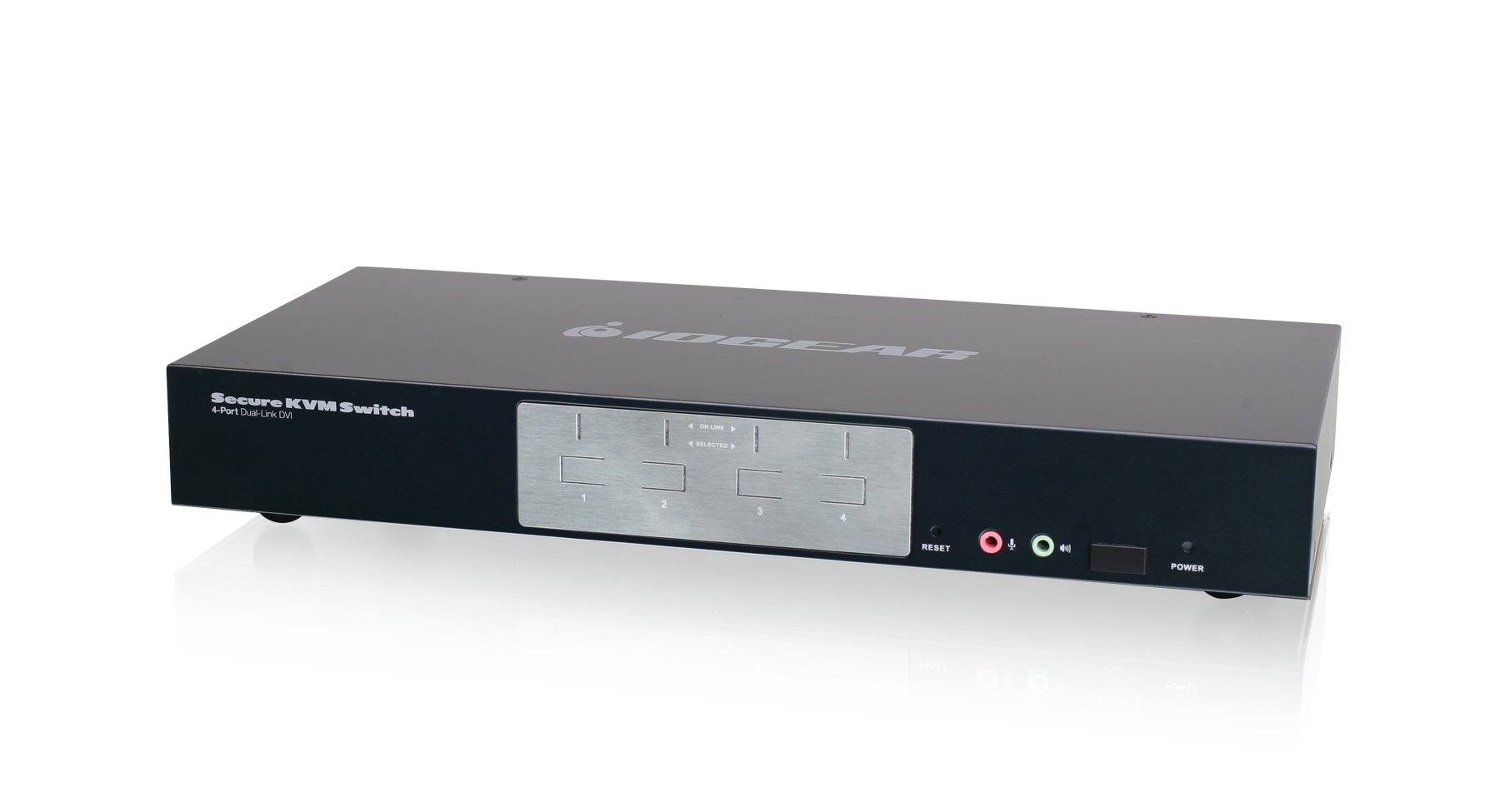

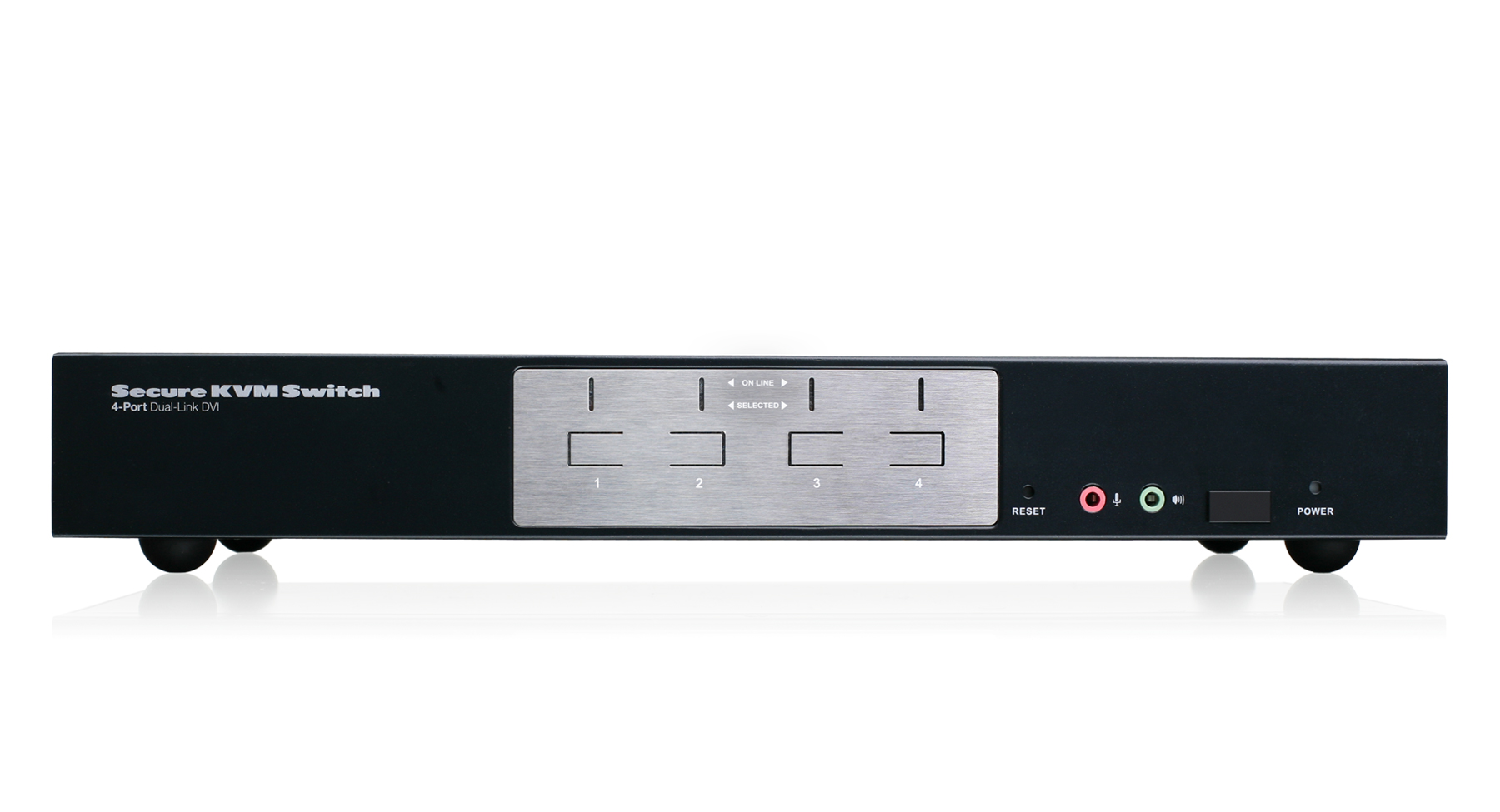

4-Port Dual-Link DVI Secure KVM Switch

4 Port Dual Link DVI Secure KVM Switch

The IOGEAR 4-port USB DVI Dual-Link Secure KVM Switch allows one USB console to control 4 computers and offers additional security features for government and military environment where security is imperative. The IOGEAR GCS1214TAA is NIAP-CERTIFIED - Validated to EAL2+ security requirements, with Peripheral Sharing Switch Protection Profile v2.1. and TAA Compliant.

GCS1214TAA supports CAC readers, but does not support any storage related devices such as thumb drives, portable hard drives and memory card readers. The support of CAC readers is not covered by the NIAP certification.

NIAP Certified / Common Criteria Certified

NIAP announced the new strategy to verify all peripheral switches such as KVMs to EAL 2+, in September 07, 2010. The new strategy also updated Peripheral Sharing Switch Protection Profile to v2.1. The Protection Profile specifies U.S. Department of Defense minimum-security requirements for peripheral switches; which enable a single set of human interface devices to be shared between multiple computers. (Refer to the NIAP U.S. Government Approved Protection Profiles website http://www.niap-ccevs.org/pp/, and the NIAP Products and Protection Profiles in Evaluation website http://www.niap-ccevs.org/in_evaluation/)

Additional hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity – non HIDs (Human Interface Devices) are ignored when switching – an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers, and automatic clearing of the keyboard and mouse buffer.
By combining physical security with controlled USB connectivity, the GCS1214TAA gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

Note:

1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST).
2. The GCS1214TAA additionally satisfies Evaluation Assurance Level 2 (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1. (Refer to the NIAP U.S. Government Approved Protection Profiles website http://www.niap-ccevs.org/pp/, and the NIAP Products and Protection Profiles in Evaluation website http://www.niap-ccevs.org/in_evaluation/)
3. IOGEAR Secure KVMs are TAA compliant.

• 4-PORT USB DUAL-LINK DVI SECURE KVM SWITCH
  One USB console controls 4 secure computers
• PORT SELECTION VIA PUSHBUTTON ONLY TO ENHANCE SECURITY
  (OSD, hotkey methods are not allowed)
• NIAP-CERTIFIED
  Validated to EAL2+ security requirements
• ISOLATED CHANNEL PER PORT
  Makes it impossible for data to be transferred between computers
• TAMPER-EVIDENT TAPE
  Provides a visual indication of any attempt to gain access to the switch's internal components
• CHASSIS INTRUSION DETECTION
  If the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
• TAMPER-PROOF HARDWARE
  All integrated circuits are soldered directly to the circuit board to prevent tampering with the components
• NON-REPROGRAMMABLE ROM
  Prevents tampering and attempts to reprogram the switch's firmware
• CLEARS KEYBOARD BUFFER
  Keyboard data is automatically cleared after transmission to the switch
• MULTIPLATFORM SUPPORT
  Windows 2000 / XP / Vista / 7, Linux, Mac, & Sun Solaris
• SUPERIOR VIDEO QUALITY
  2560 x 1600 (DVI Dual-Link), 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
• RUGGED METAL ENCLOSURE
• BUILT-IN INTERNAL POWER
• SPEAKER AND MICROPHONE SUPPORT
• CAC READER SUPPORT
  Supports CAC readers, but does not support any storage related devices such as thumb drives, portable hard drives and memory card readers. The support of CAC readers is not covered by the NIAP certification.

Console:

• DVI monitor
• USB keyboard and mouse
• Speakers and microphone

Computer:

• DVI port - Single or Dual-Link DVI video card
• Type "A" USB port

Operating Systems:

• Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
• Mac OS 9 to 10.x
• Oracle® Solaris
• Linux, UNIX and other USB supported systems*

*Additional drivers and support may be needed

**Dual-Link DVI-D USB 2.0 TAA compliant  KVM Cables sold separately (G2L7D02UDTAA, G2L7D03UDTAA, G2L7D05UDTAA)

• 1 x 4-Port Dual-Link DVI Secure KVM Switch
• 1 x Power Cord
• 1 x User Manual
• 1 x Registration Form
