8-Port 19" LCD KVM Drawer (TAA Compliant)

8-Port KVM LCD Console

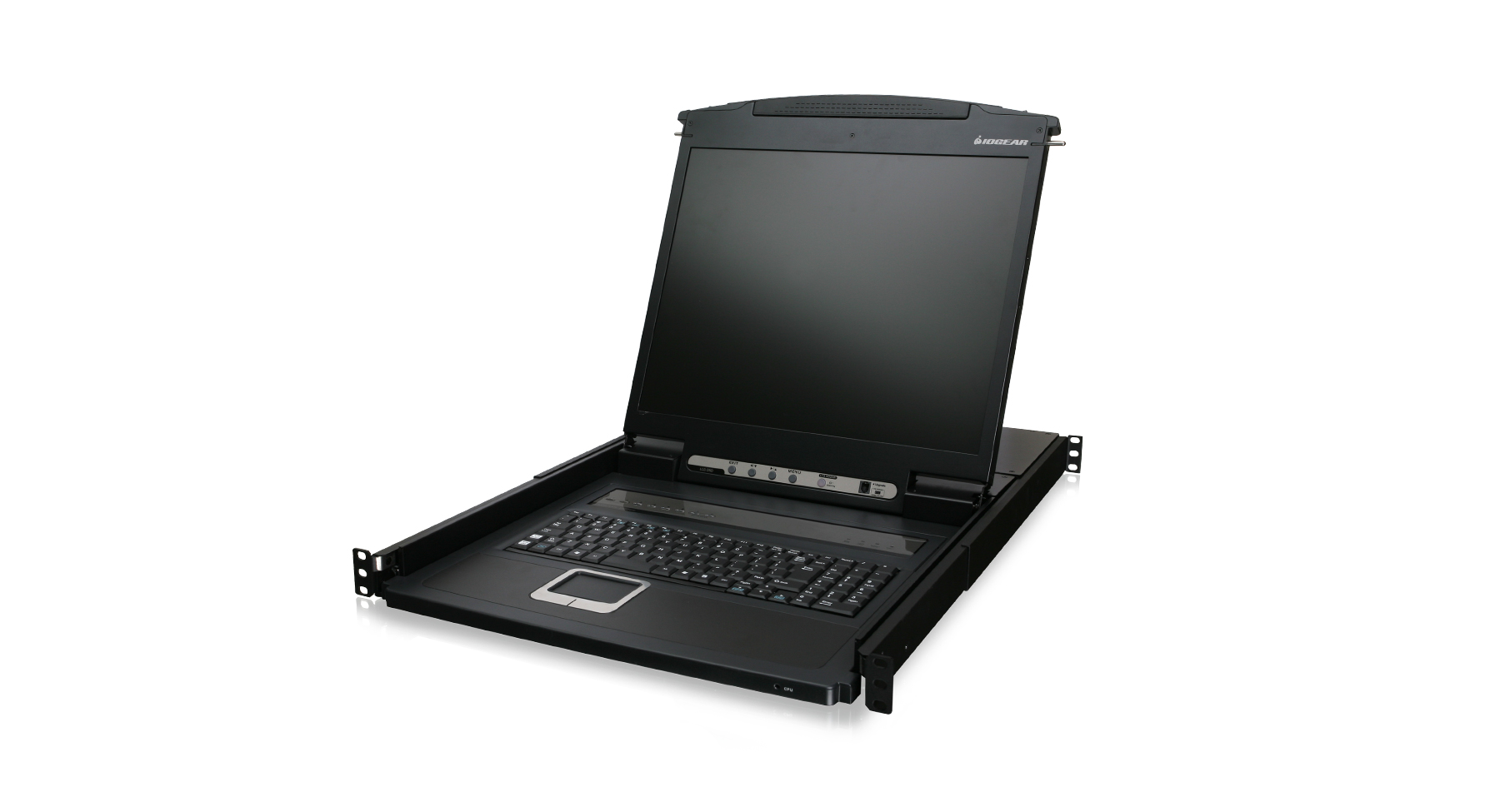

IOGEAR's GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The GCL1908 fits into a universal 1U rack mount space.

The GCL1908 supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to 8 computers, but as many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.

Benefits:

• It increases space, productivity, and provides an energy cost saving solution
• It contributes to a greener environment by reducing the amount of waste generated by multiple components
• An easy and efficient way to organize and streamline a growing or expanding server operation

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models

16-Port 19" LCD KVM Drawer

• Integrated 8-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard and touchpad
• 1280x1024 resolution on 19" rack mount LCD provides a sharp video display
• Adjustable mounting rail to fit different sizes of racks
• Multiplatform OS support - Windows®, Mac and Linux®
• Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on-screen display) and hotkeys
• Auto Scan Mode to monitor connected computers

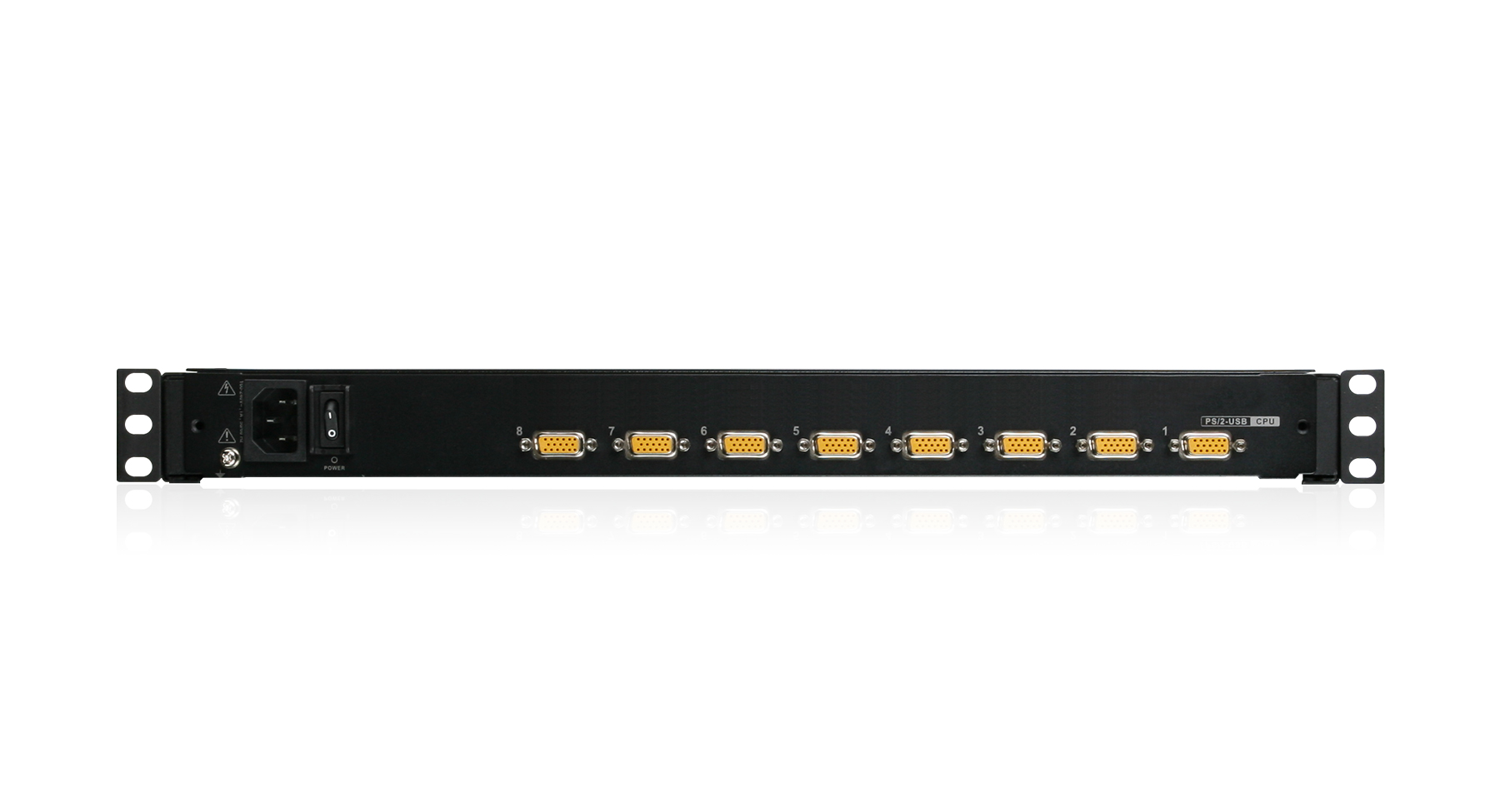

• External USB or PS/2 with VGA Console port
• Support special keys on Mac and Sun keyboards
• Cascade up to 2 levels - control up to 128 computers from a single console*
• Security - 2 level password protection for OSD
• DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
• Rack mountable in a 19" (1U) system rack
• Firmware upgradeable
• Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
• Fully Supports DDC2B

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models

Computers:

• VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
• PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

Operating Systems:

• Windows(R) XP, Windows Vista(R), Windows(R) 7*, Windows(R) 8, Windows(R) 8.1, Windows 10
• Mac OS 9 to 10.x
• Oracle® Solaris
• Linux , Unix and other USB supported systems **
**Additional drivers and support may be needed
*IOGEAR’s DynaSync provides the EDID support for Windows(R) 7

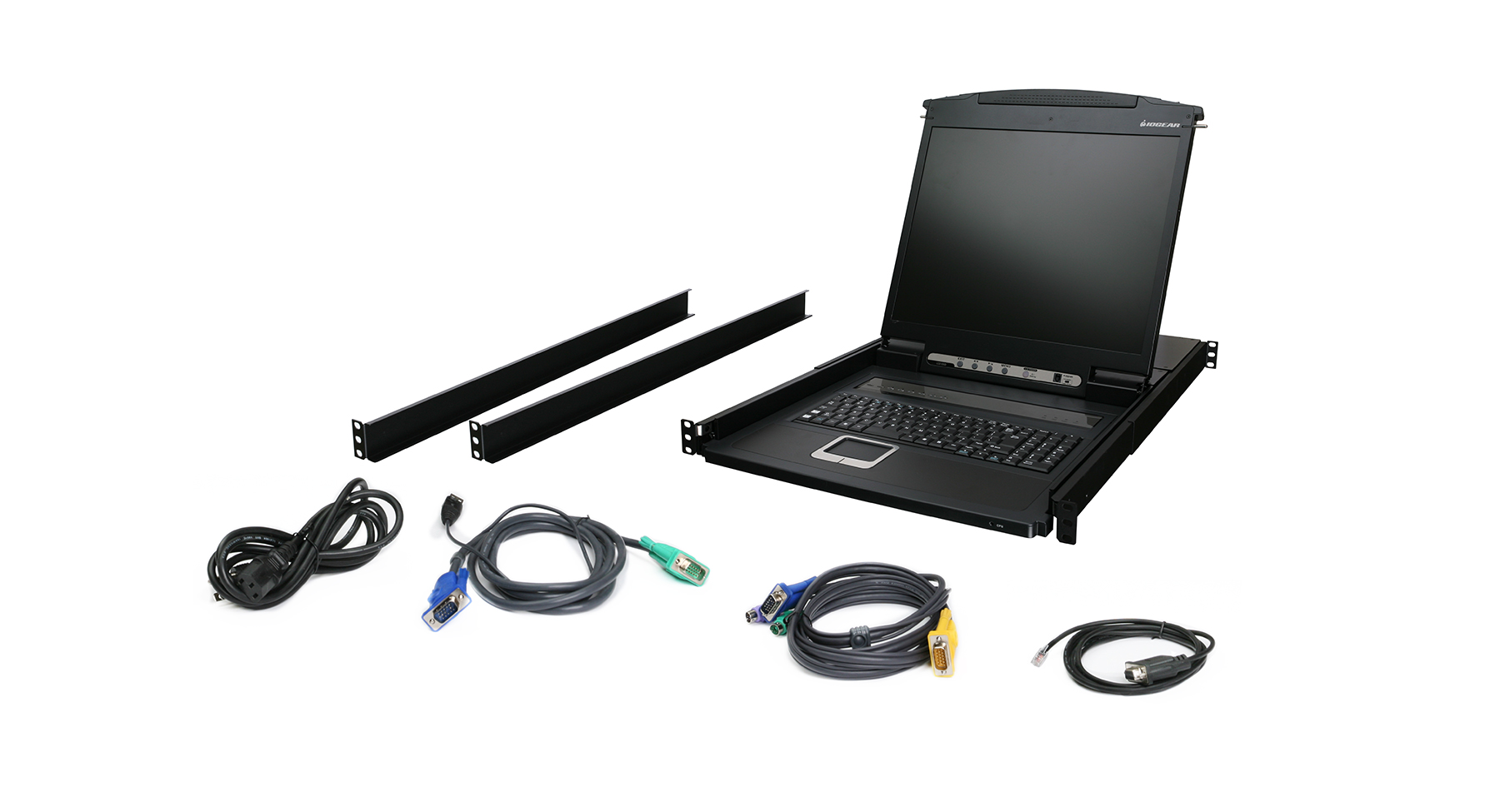

• 1 x 8-Port 19" LCD KVM
• 1 x PS/2 KVM Cable
• 1 x USB KVM Cable
• 1 x Firmware Upgrade Cable
• 1 x Standard Long Rack Mount Kit (Fits 27.6~41.3 Inch Depth)
• 1 x Power Cord
• 1 x Quick Start Guide
• 1 x Warranty Card
